Special properties:

• Resistance to crepharding.
• Good mechanical properties.
• Excellent resistance to low temperature and radiation.
• Wide operating temperature -100℃~250℃.
• Easily processed and easily pigmented.

Main applications:

• Automotive industry: all kinds of vehicle seal ring, oil seal, diaphragm, conduit, valve lining, etc.
• Petrochemical industry: all kinds of high temperature, low temperature, chemical erosion resistance pump, valve, oil tank and other equipment sealing products.
• Astronomy industry: aircraft fuel oil and lubricating oil seals, contact parts, such as all kinds of O ring, filling, sealing ring, sensor materials, diaphragm, liner clamp.
• Military industry: low temperature resistance/oil resistance/acid resistance in harsh environment, such as military aircraft hydraulic system infusion bellows, sealing strip of special vehicle doors and Windows/back cover, sensor materials.

Characteristics:

Type (according to GB/T 5576-1997)…………………………..PVMQ

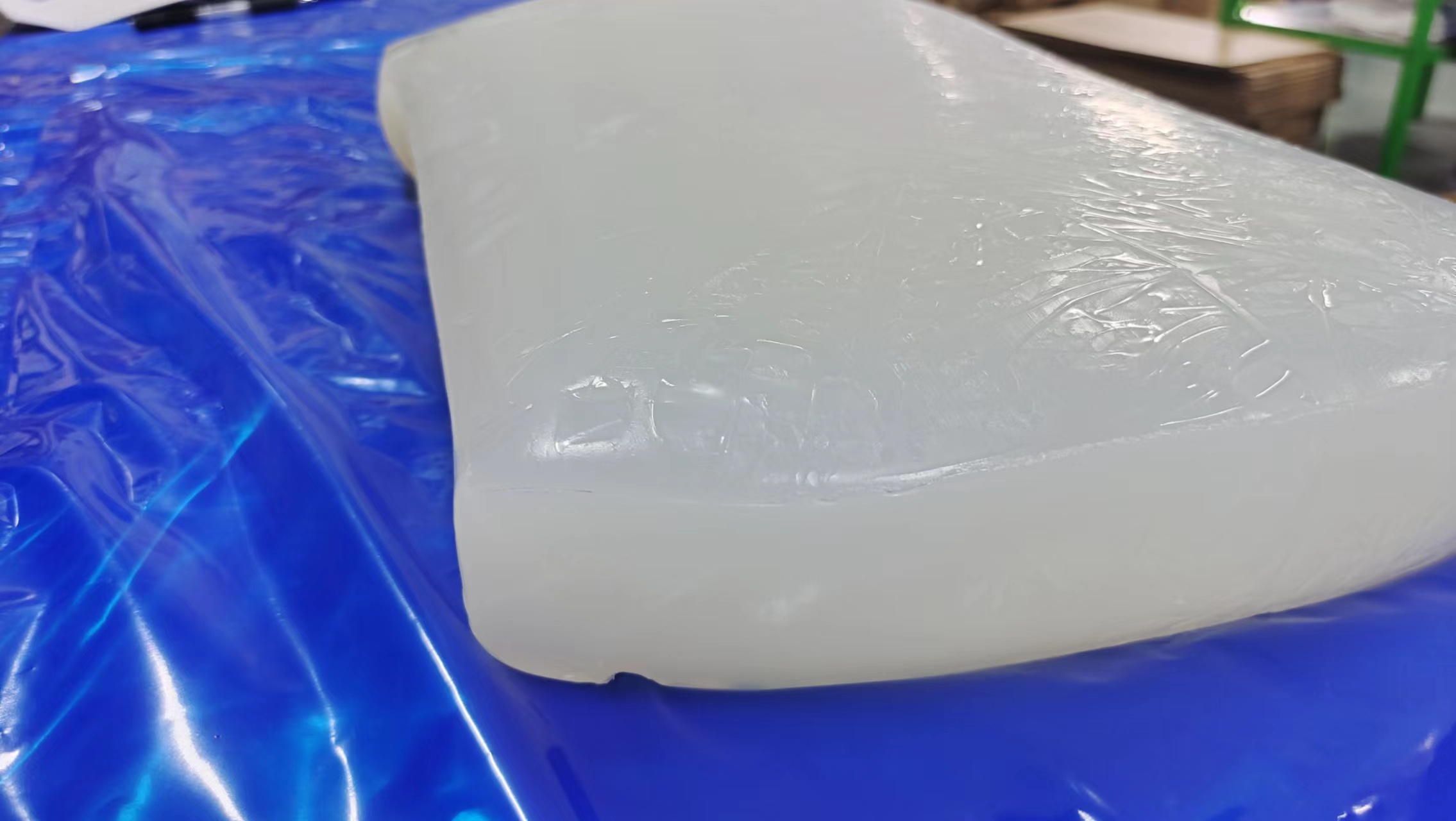

Natural color……………………………………………….translucent, smooth surface, no impurities

Curing Condition:

After addition of 1.2% of 2.5-dimethyl bis -(tertiobutyl peroxy) 2.5-hexane (45%) and vulcanization for 5 min. at 180°C, with post curing at 200℃×4hour.

Mechanical properties：

Item	Testing Method	Unit	SR3250UDP	SR3270UDP	SR3280UDP
Density	ASTM D792	g/cm3	1.25	1.26	1.27
Hardness(Shore A)	ASTM D2240		50	69	80
Tensile Strength	ASTM D412	MPa	9.5	10.2	9.2
Elongation at Break	ASTM D412	%	550	400	140
Tear Strength (Right Angle)	ASTM D 624 C	kN/m	28	35	19
Brittle Temperature		℃	-100℃	-100℃	-100℃
Mechanical properties 1.1 Performance changes after aging at 225℃×72H
Hardness(Shore A)	ASTM D2240		52	71	82
Tensile Strength	ASTM D412	MPa	9.2	9.6	9.0
Elongation at Break	ASTM D412	%	400	310	120
Mechanical properties 1.2 Performance changes after aging at 250℃×72H
Hardness(Shore A)	ASTM D2240		56	75	85
Tensile Strength	ASTM D412	MPa	5.2	5.4	5.6
Elongation at Break	ASTM D412	%	340	270	80



Packaging：20 kg per cardboard boxes.



Storage and shelf life:

SR 32XX UDP series may be stored in its original unopened packaging at a temperature below 40°C for up to 12 months as from the date of manufacture.
