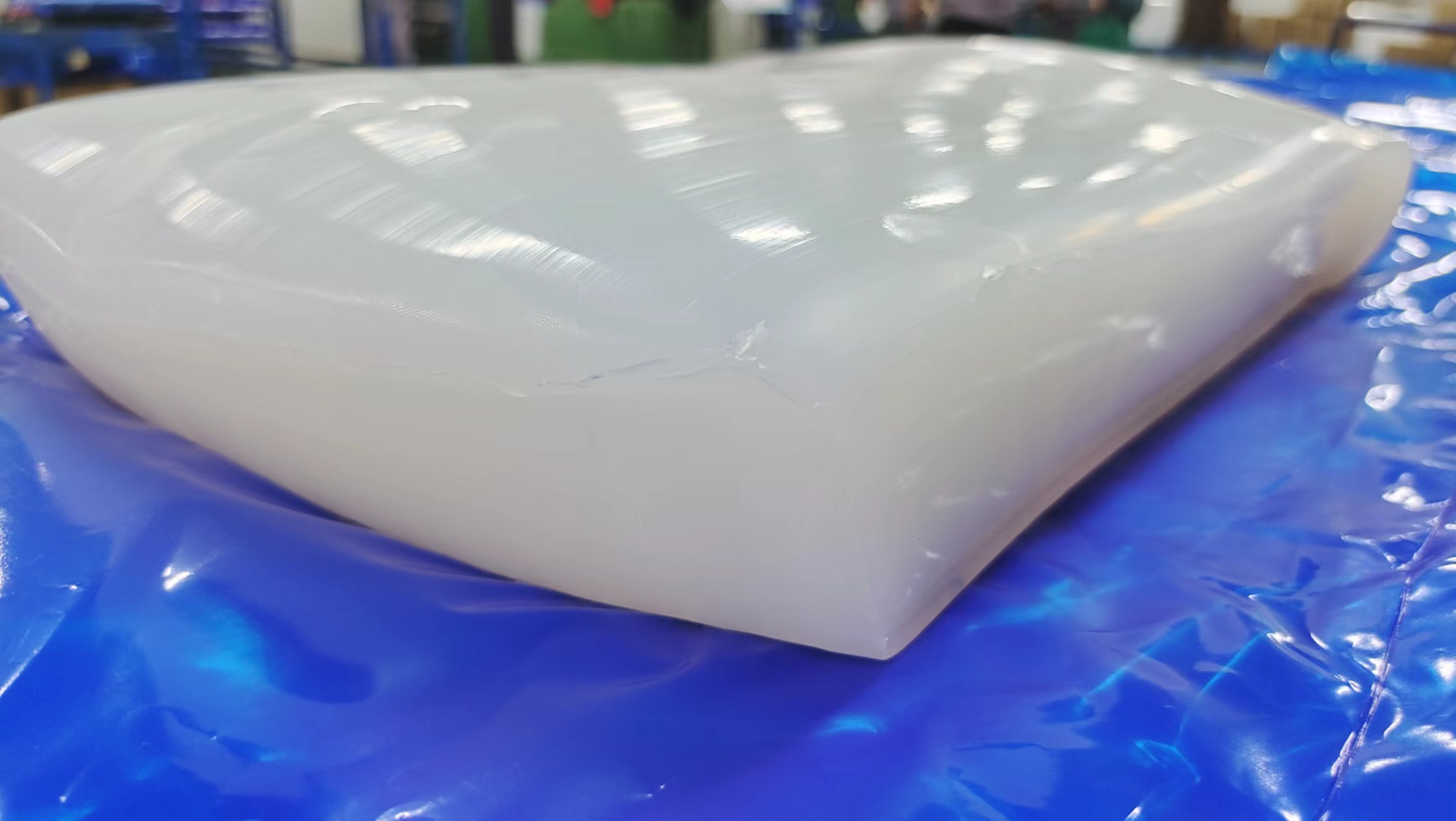

Silicone Rubber 3XXU Series
Silicone Rubber 3XXU Series
Silicone Rubber 3XXU Series
This series is a premixed compound of silicone rubber with platinum curing series with good balanced properties, vulcanizing under heat after addition of a vulcanizing agent that could be chosen according to processing requirement.
product details
Special properties:
- Platinum curingadapted to process of molding, extrusion and calendaring.
- Excellent operation time (after adding platinum curing agent)
- Good balanced
- Good
- Easy to process and demold, not sticky to rolls.
- Good stability up to 200℃.
- Slight replastification after prolonged storage.
- Wild range of reloading or blending.
- Bright colors easily obtained
Main applications:
- Molding article required Platinum cured,molded general miscellaneous articles,kitchenware,extrusions such as cable, seals, sheet, tube, etc,Silicone calendering cloth&sheet & plate
Characteristics:
Type (according to GB/T 5576-1997)…………………………..VMQ
Natural color……………………………………………………………. translucent
Curing Condition:
After addition of 1.1% of 2,5-dimethyl-2-5-di(tert-butylperoxy) hexane (at 45%) and vulcanization for 5min at 175°C.
Mechanical properties
| Item | Testing Method | Unit | Technical Data | ||||
| SR340U | SR350U | SR360U | SR370U | SR380U | |||
| Appearance | Visual Observation | Translucent | Translucent | Translucent | Translucent | Translucent | |
| Density | ASTM D792 | g/cm3 | 1.13 | 1.16 | 1.19 | 1.12 | 1.23 |
| Hardness | ASTM D2240 | Shore A | 39 | 50 | 59 | 71 | 80 |
| Tensile Strength | ASTM D412 | Mpa | 6.9 | 7.2 | 6.8 | 8.2 | 7.1 |
| Elongation | ASTM D412 | % | 562 | 430 | 348 | 248 | 202 |
| 100% Modulus | ASTM D412 | Mpa | 0.81 | 1.33 | 2.12 | 3.61 | 2.65 |
| Tear Strength | ASTM D624 Die B | N/mm | 13 | 14 | 16 | 18 | 17 |
| Rebound | ASTM D395 Method B | % | 70.1 | 64.9 | 57.5 | 56.5 | 55.2 |
Packaging：20 kg per cardboard boxes.
Storage and shelf life:
This series may be stored in its original unopened packaging at a temperature below 40°C for up to 12 months as from the date of manufacture.
