Silicone Rubber 8XXU Series
Silicone Rubber 8XXU Series
Silicone Rubber 8XXU Series

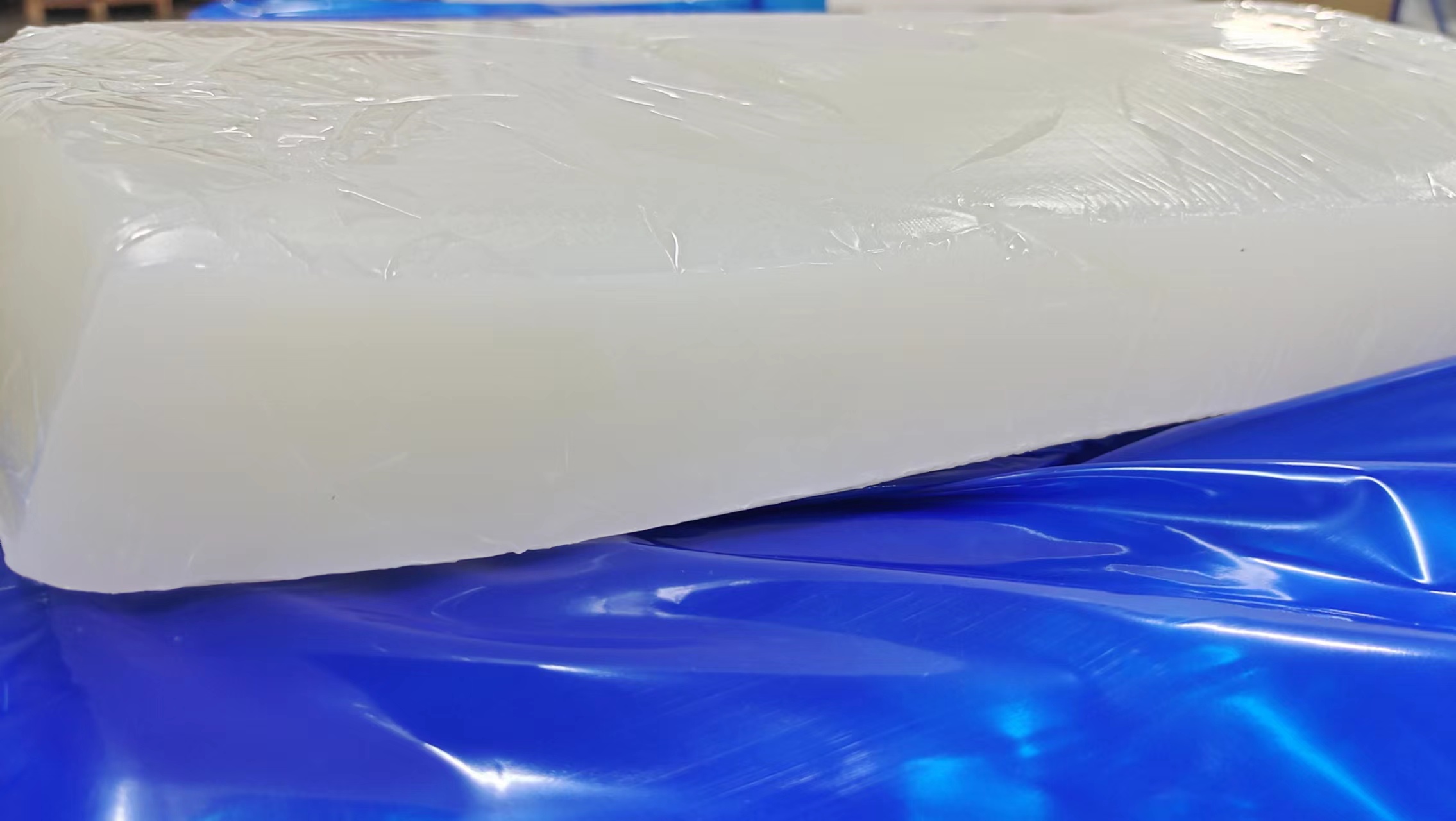

This series is a premixed compound of silicone rubber with good rebound properties, vulcanizing under heat after addition of a vulcanizing agent that could be chosen according to processing requirement.
product details
Special properties:
- High rebound and low compression set.
- Easy to process and demold, not sticky to 2-rolls.
- Slight replastification after prolonged storage
- Bright colors easily obtained with color bases.
- Wild range of reloading or blending.
Main applications:
- SR8XXU can be used to manufacture articles required high rebound and low compression set, such as oil ring, gasket and roller,etc.
Characteristics:
Type (according to GB/T 5576-1997)………………………….. VMQ
Natural color……………………………………………………………. translucent
Curing Condition:
Cure for 5 mins at 175℃ after addition of 1.1% of 2,5-dimethyl-2-5-di(tert-butylperoxy) hexane (at 45%).
Mechanical properties
| Item | Testing Method | Unit | Technical Data | |||||
| SR830U | SR840U | SR850U | SR860U | SR870U | SR880U | |||
| Appearance | Visual Observation | Translucent | Translucent | Translucent | Translucent | Translucent | Translucent | |
| Density | ASTM D792 | g/cm3 | 1.07 | 1.10 | 1.14 | 1.16 | 1.19 | 1.22 |
| Hardness (Shore A) |
ASTM D2240 | Shore | 34 | 41 | 50 | 63 | 71 | 80 |
| Tensile Strength | ASTM D412 | Mpa | 5.6 | 6.1 | 8.9 | 8.5 | 8.9 | 7.2 |
| Elongation | ASTM D412 | % | 576 | 435 | 442 | 357 | 289 | 175 |
| 100% M | ASTM D412 | Mpa | 0.63 | 0.93 | 1.35 | 2.2 | 3.16 | 4.54 |
| Tear Strength | ASTM D624 B | N/mm | 8 | 9 | 12 | 18 | 16 | 11 |
| Compress Set (177℃*22h) |
ASTM D395 | N/mm | 10 | 7 | 9 | 10 | 11 | 9 |
| Rebound | ASTM D395 Method B | % | 67 | 72 | 66 | 58 | 53 | 49 |
Packaging：20 kg per cardboard boxes.
Storage and shelf life:
This series may be stored in its original unopened packaging at a temperature below 40°C for up to 12 months as from the date of manufacture.
