The Ultra-Fine Halogen-Free Flame Retardant Specialist for Silicone Sealants and Engineering Elastomers
1. Executive Summary
The global flame retardant silicone sealant market is expanding rapidly, driven by escalating building fire safety regulations, expanding rail transit and new energy infrastructure, and rising global demand for green, low-smoke, halogen-free materials. Future trends increasingly favor halogen-free flame-retardant systems, VOC emission reduction, and improved material compatibility.
Yet for silicone sealant manufacturers and rubber compounders, the transition presents a persistent technical challenge: how to achieve UL94 V-0 flame retardancy without compromising dispersion quality, adhesion performance, surface finish, or long-term durability—all while meeting stringent environmental directives like RoHS and REACH.
Among the available halogen-free technologies, GreenThinking® FR76RP stands apart. Through ultra-fine processing, surface modification, and a unique lamellar structure, this high-efficiency composite flame retardant delivers V-0 performance with exceptional dispersion, smooth extrusion surfaces, superior high-temperature char formation, and anti-drip properties during combustion. Developed by Sanexin Polymer—a company with deep compounding expertise and one of China’s Top 5 custom compounding facilities—FR76RP is engineered for real-world production, not just laboratory success.
As a Halogen Free Flame Retardant factory China, Sanexin brings manufacturing excellence and technical expertise to every batch. Whether you are seeking a Flame Retardant for Silicone Sealant factory with proven production capabilities, or require an Anti Drip Flame Retardant manufacturer China that understands the critical requirements of thin-wall applications, FR76RP delivers consistent, reliable performance. As a trusted Low Smoke Flame Retardant factory, we prioritize safety and environmental responsibility. Moreover, as a Halogen Free Flame Retardant supplier China, we are committed to providing REACH Compliant Halogen Free Flame Retardant solutions that meet the most rigorous global standards.
This report examines the technical architecture of FR76RP, its mechanism of action, comparative performance data, and the unique manufacturing foundation that enables its superior performance in silicone sealants and engineering elastomers.
2. The Silicone Sealant Challenge: Why Conventional Approaches Fall Short
2.1 The Trade-off Dilemma in Flame-Retardant Sealants
Silicone sealants are widely specified in construction, rail transit, electronics, and automotive applications for their excellent weatherability, temperature resistance, and adhesion. However, achieving flame retardancy in silicone systems has historically forced a compromise:
- High loadings of conventional flame retardants (typically 80–130 phr) are required to achieve V-0 ratings
- These high loadings degrade mechanical properties, reduce adhesion, and compromise extrusion quality
- Many conventional flame retardants contain halogens (PBBs, PBDEs, chlorine, fluorine) or antimony trioxide—increasingly restricted under RoHS and REACH
- Traditional fillers like aluminum hydroxide and zinc oxide often result in poor dispersion, rough surfaces, and bubble formation during processing
The demand for Halogen free flame retardant for silicone sealant has never been greater, as manufacturers seek solutions that deliver both flame retardancy and processability without compromising end-product quality.
2.2 Regulatory Pressure: The Halogen-Free Imperative
Regulatory frameworks are accelerating the shift away from halogenated flame retardants:
- RoHS Directive 2011/65/EU restricts PBBs, PBDEs, and other halogenated compounds
- REACH Regulation (EC 1907/2006) imposes strict limits and requires compliance monitoring
- GB/T 24267-2009 establishes specific requirements for flame-retardant sealants in building applications
Non-compliance can result in fines, product recalls, or bans from key markets. The message is clear: halogen-free is no longer optional—it is a market access requirement.
2.3 What V-0 Certification Doesn’t Tell You
Achieving UL94 V-0 is the minimum entry requirement for flame-retardant silicone sealants. However, V-0 certification alone provides no information about:
- Dispersion uniformity and batch-to-batch consistency
- Adhesion to substrates (glass, metal, concrete, plastics)
- Surface quality and bubble-free extrusion
- Long-term retention of flame retardancy under aging
- Smoke emission and toxicity during combustion
- Compatibility with the full formulation (base polymers, plasticizers, curing agents)
This is where the distinction between commodity flame retardants and engineered solutions like FR76RP becomes critical.
3. FR76RP: Product Overview and Technical Specifications
3.1 Description
GreenThinking® FR76RP is a high-efficiency composite flame retardant developed through ultra-fine processing and surface modification. It is halogen-free, environmentally friendly, and offers high synergistic flame retardant efficiency, excellent processability, easy dispersion, smooth extrusion surfaces, superior high-temperature char formation, and anti-drip properties during combustion.
For applications requiring Ultra fine flame retardant with anti drip for thin wall parts, FR76RP’s engineered particle characteristics and lamellar structure provide exceptional performance. The ultra-fine particle size ensures uniform distribution even in thin-wall sections, while the anti-drip mechanism prevents molten material from spreading fire—a critical safety feature.
As a V0 halogen free flame retardant for silicone sealants, FR76RP reliably achieves the UL94 V-0 rating required for demanding building, transportation, and electronics applications.
3.2 Typical Properties
| Property | Unit | Typical Value |
| Appearance | – | White powder |
| Active Ingredient | % | ≥98.5 |
| Brightness (R457nm) | – | ≥95.9 |
| Moisture Content | % | ≤0.36 |
| D(0.5) Particle Size | μm | 2.65 |
| D(0.97) Particle Size | μm | 11.39 |
| Average Density | g/cm³ | 2.35 |
| pH Value | – | 9.8 |
| Specific Surface Area (BET) | m²/g | ~15 |
| Oil Absorption | ml/100g | ~25 |
3.3 Key Benefits
Flame Retardant Efficiency:
- High synergistic action, easily achieves UL94 V-0 rating
- Forms a viscous insulating char layer upon heating
- Releases water and CO₂, absorbs heat, interrupts combustion chain reaction
Environmental Compliance:
- Halogen-free: No PBBs, PBDEs, chlorine, fluorine, or antimony trioxide
- Compliant with EU RoHS and WEEE directives
- Meets GB/T 24267-2009 standard for building flame-retardant sealants
Processing Excellence:
- Good dispersion in silicone (107 base polymer) and rubber compounds
- Good fluidity, easy extrusion with stable dimensional properties
- Low energy consumption during mixing
- Shortens optimum cure time
Superior Physical Properties:
- Produces smooth, bubble-free extruded surfaces
- Relatively low density
- High thermal stability with effective char formation and anti-drip performance
- Waterproof and mildew-resistant
- Excellent adhesion and dimensional stability
Fine Particle Characteristics:
- Ultra-fine particle size with lamellar (platelet) structure
- High specific surface area (~15 m²/g)
- Low impurities—non-toxic and odorless
As a Flame retardant with excellent dispersion for silicone rubber, FR76RP ensures uniform distribution throughout the compound, eliminating agglomerates that can cause surface defects or performance inconsistencies. The surface-modified particles integrate seamlessly with the silicone matrix, delivering both flame retardancy and superior physical properties.
4. Flame Retardant Mechanism: How FR76RP Works
FR76RP operates through a multi-modal flame retardant mechanism that combines physical barrier formation, chemical radical scavenging, and heat absorption.
4.1 Barrier Formation (Condensed Phase)
Upon heating, FR76RP decomposes on the product surface, forming a viscous, charred crust and a porous insulating layer. This barrier physically isolates oxygen, heat, and volatile small molecules from the combustion zone.
The lamellar (platelet) structure of FR76RP creates a highly efficient “tortuous path” (maze effect) that further slows oxygen and heat penetration—a critical advantage over spherical or irregular particle morphologies.
4.2 Radical Scavenging (Gas Phase)
Free radicals generated during decomposition react with H⁺ and OH⁻ radicals—the chain carriers that sustain combustion—thereby terminating the chain reaction of burning.
4.3 Heat Absorption and Dilution
The decomposition process releases water and carbon dioxide while efficiently absorbing a significant quantity of heat, suppressing flame propagation through cooling and dilution effects.
4.4 Anti-Drip Performance
FR76RP’s superior high-temperature char formation provides anti-drip properties during combustion—a critical requirement for thin-wall components, vertical applications, and electronics where molten drips can spread fire.
For rail transit applications, Low smoke halogen free FR for rail transit components is essential. FR76RP’s low smoke emission and halogen-free composition ensure passenger safety and meet stringent transportation industry standards.
4.5 Comparison with Conventional Approaches
| Mechanism | FR76RP | Conventional ATH/ZnO | Halogenated Systems |
| Barrier Formation | Lamellar char (excellent) | Moderate | Limited |
| Radical Scavenging | Yes (H⁺/OH⁻ capture) | No | Yes (halogen radicals) |
| Heat Absorption | Yes (endothermic decomposition) | Yes | Limited |
| Anti-Drip | Yes | No | Limited |
| Smoke Emission | Low | Moderate | High (toxic) |
| Halogen Content | None | None | High |
| Regulatory Risk | Low | Low | High (RoHS/REACH) |
5. Performance in Silicone Sealants
5.1 Dispersion and Processing
FR76RP demonstrates excellent dispersion in 107 silicone base polymer. The ultra-fine particle size (D(0.5) = 2.65 μm) and surface treatment ensure rapid, uniform incorporation without agglomeration—a common failure mode with conventional fillers.
Key processing advantages:
- Good fluidity of the base compound
- Replaces traditional fillers (aluminum hydroxide, zinc oxide)
- Produces bright, bubble-free surfaces
- Low energy consumption during mixing
- Stable dimensional properties during extrusion
For manufacturers seeking Smooth extrusion flame retardant for silicone profiles, FR76RP delivers exceptional surface quality. The ultra-fine particles and optimized rheology ensure consistent extrusion with minimal die swell, smooth surfaces, and dimensional stability—reducing scrap rates and improving production efficiency.
5.2 Flame Retardancy
FR76RP enables silicone sealants to achieve UL94 V-0 ratings reliably. The synergistic action of the composite formulation provides efficient flame retardancy even at moderate loading levels.
5.3 Physical Properties
In silicone sealant applications, FR76RP delivers:
- Excellent adhesion to various substrates
- Good dimensional stability
- Waterproof and mildew-resistant properties
- Relatively low density compared to conventional flame retardant systems
5.4 Regulatory Compliance
FR76RP meets the requirements of:
- GB/T 24267-2009 – Building Flame-Retardant Sealants
- EU RoHS Directive 2011/65/EU
- EU WEEE Directive
- REACH Regulation (EC 1907/2006)
For electronics applications, REACH RoHS compliant flame retardant for electronics is non-negotiable. FR76RP’s full compliance with both REACH and RoHS directives ensures that products incorporating this flame retardant can access global markets without regulatory barriers.
5.5 Recommended Loading
Typical loading levels range from 50 to 130 phr, adjustable based on target hardness, physical properties, and flame retardancy requirements. In silicone sealant applications, FR76RP typically comprises approximately 50% by volume of the formulation, with adjustments possible based on specific performance requirements.
6. Performance in Rubber Compounds
Beyond silicone sealants, FR76RP is widely used in flame-retardant rubber compounds across multiple industries.
6.1 Compatible Elastomers
FR76RP is suitable for a variety of rubber types, including:
- HCR (High-Consistency Silicone Rubber)
- EPDM
- NBR
- SBR
6.2 Application Industries
FR76RP is widely used in flame-retardant rubber and plastic components for:
- Rail transit components
- Electronic parts
- Automotive applications
- Oil and coal mining equipment
- Construction materials
- Cables and coatings
For condensation-cure silicone systems, FR76RP serves as a Non toxic odorless FR additive for condensation cure silicone. The low impurity content and absence of volatile organic compounds ensure that the additive does not interfere with the condensation cure mechanism, while the non-toxic, odorless characteristics make it suitable for interior applications and closed environments.
6.3 Key Advantages in Rubber
In rubber compounds, FR76RP provides:
- Smooth surfaces with relatively low specific gravity
- V-0 class fire-retardant grade
- RoHS and WEEE compliance
- Good dispersion and easy processing
- Superior char formation and anti-drip performance
7. FR76RP vs. FR99RP vs. FR98RP: A Portfolio Comparison
The GreenThinking® FR Series comprises complementary technologies. Here is how FR76RP compares to FR99RP and FR98RP:
| Feature | FR76RP | FR99RP | FR98RP |
| Primary Application | Silicone sealants + rubber | Rubber (all-rounder) | Rubber (high LOI) |
| UL94 Rating | V-0 | V-0 | V-0 |
| Halogen-Free | Yes | Yes | Yes |
| REACH/RoHS | Compliant | Compliant | Compliant |
| Particle Size | Ultra-fine (2.65 μm) | Fine | Fine |
| Surface Treatment | Yes | Yes | Limited |
| Lamellar Structure | Yes | Limited | No |
| Dispersion Quality | Excellent | Very good | Moderate |
| Surface Finish | Smooth, bubble-free | Very good | Good |
| Anti-Drip | Yes | No | No |
| Char Formation | Viscous insulating char | Ceramic-like char | Intumescent (high soot) |
| LOI Level | Moderate | Moderate | High (37–42%) |
| Tensile Strength | Very good | Excellent | Moderate |
| Heat Aging | Good | Superior | Poor |
| Compression Set | Good | Superior | Poor |
| Loading Range | 50–130 phr | 60–130 phr | 60–130 phr |
| Silicone Compatibility | Excellent | Good | Moderate |
Selection Guide:
- Choose FR76RP for silicone sealants, high-gloss extrusions, thin-wall components, or applications demanding ultra-fine dispersion and anti-drip performance
- Choose FR99RP for rubber applications prioritizing heat aging resistance, compression set, and overall physical property balance
- Choose FR98RP only when maximum LOI is the sole priority—but accept the trade-offs in physical properties and durability

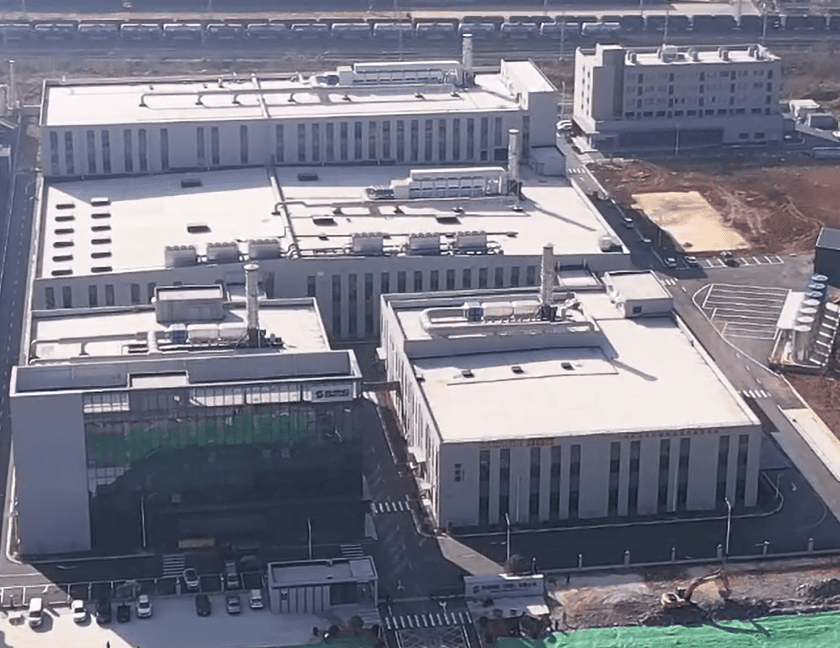

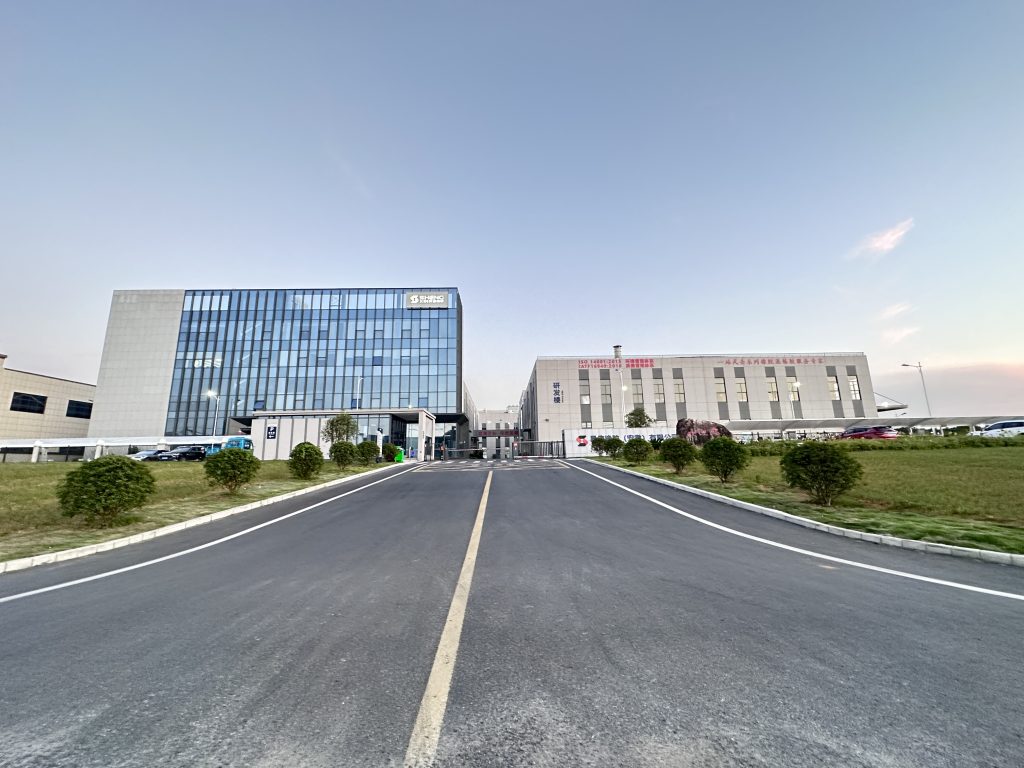

8. Manufacturing Excellence: The Sanexin Advantage
8.1 Not Just a Chemical Supplier – A Compounding Powerhouse
Most flame retardant suppliers develop their products in isolation from real-world compounding challenges. Sanexin Polymer is fundamentally different. The company’s flame retardant portfolio is built upon decades of hands-on, production-scale compounding experience—experience that directly informs every aspect of FR product design, from particle size engineering to surface modification to loading recommendations.
8.2 Three Integrated Manufacturing Pillars
Sanexin’s manufacturing platform rests on three interconnected capabilities:
Pillar 1: Dedicated Flame Retardant Production
The GreenThinking® FR Series—including FR76RP—is manufactured in a purpose-built facility utilizing super-refinement, surface activation, and controlled compounding processes. Each batch undergoes comprehensive physical, chemical, and flame retardancy testing to ensure consistent V-0 performance and regulatory compliance.

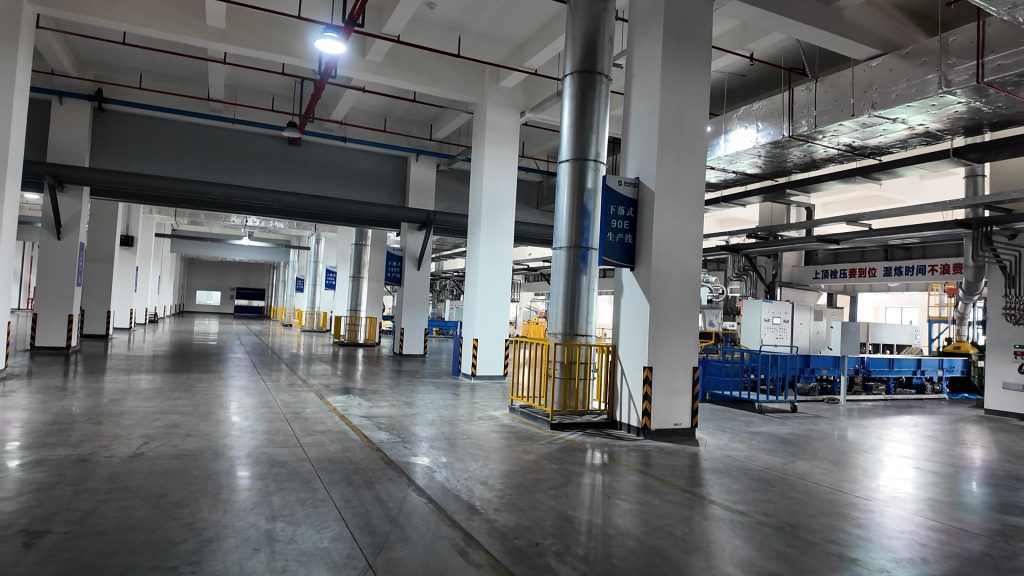

Pillar 2: China’s First Dust-Free Colored Silicone Rubber Production Line
Sanexin operates China’s first dust-free colored silicone rubber manufacturing facility. This is not a side business—it is a testament to the company’s deep expertise in dispersion technology, pigment stabilization, and process control. Colorants are introduced in a fully enclosed, dust-free system, eliminating airborne contamination, protecting worker health, and ensuring batch-to-batch color consistency. The dispersion and surface-engineering knowledge developed for this facility has been directly transferred to FR76RP, enabling the ultra-fine particle size and surface treatment that distinguish it from conventional flame retardants.
Pillar 3: One of China’s Top 5 Custom Compounding Facilities

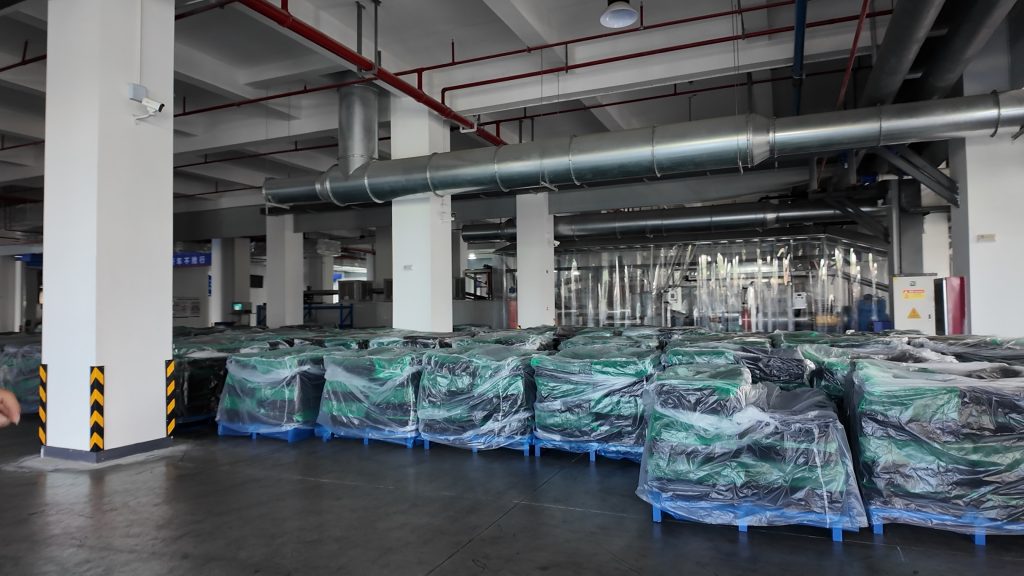

Sanexin owns and operates one of the five largest custom compounding plants in China. This is not merely a production asset—it is the foundational technical engine behind the FR Series. Every flame retardant formulation, including FR76RP for silicone sealants, is validated in this facility using the same production-scale mixers, shear rates, temperatures, and cycle times that customers use. The compounding plant produces high-volume custom compounds for demanding applications across automotive, rail transit, electronics, and industrial sectors—providing a continuous stream of real-world formulation data that feeds back into flame retardant development.
8.3 The Virtuous Cycle: Formulation Expertise Drives Product Innovation
The integration of flame retardant development with high-volume compounding creates a unique closed-loop innovation cycle:
- R&D chemists develop new flame retardant concepts—like FR76RP—based on compounding insights
- Pilot batches are compounded in production-scale mixers—not just lab mills
- Performance data is generated using the same test methods applied to commercial compounds
- Process feedback (dispersion behavior, cure response, extrusion characteristics, surface quality) informs formulation refinement
- Customer compounds incorporating FR76RP are validated in the same compounding facility before market release
This means that when a customer adopts FR76RP, the formulation has already been production-validated under real-world conditions—not merely tested in an idealized laboratory setting.
8.4 Why This Matters for Customers
Sanexin’s compounding heritage provides three tangible customer benefits:
- Formulations that actually work on production equipment – Not just lab-scale successes
- Technical support grounded in real manufacturing experience – The team understands your mixing constraints, cycle time pressures, and quality control challenges
- Accelerated development timelines – Recommended formulations are already pre-validated, reducing your trial-and-error cycle
9. Regulatory Compliance and Environmental Profile
9.1 Halogen-Free Certification
FR76RP is free from halogen-based flame retardants including polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), chlorine, fluorine, and antimony trioxide.
9.2 EU Directives Compliance
FR76RP complies with:
- EU REACH Regulation (EC 1907/2006)
- RoHS Directive 2011/65/EU (RoHS 2.0) and subsequent amendment (EU) 2015/863
- WEEE Directive 2002/96/EC

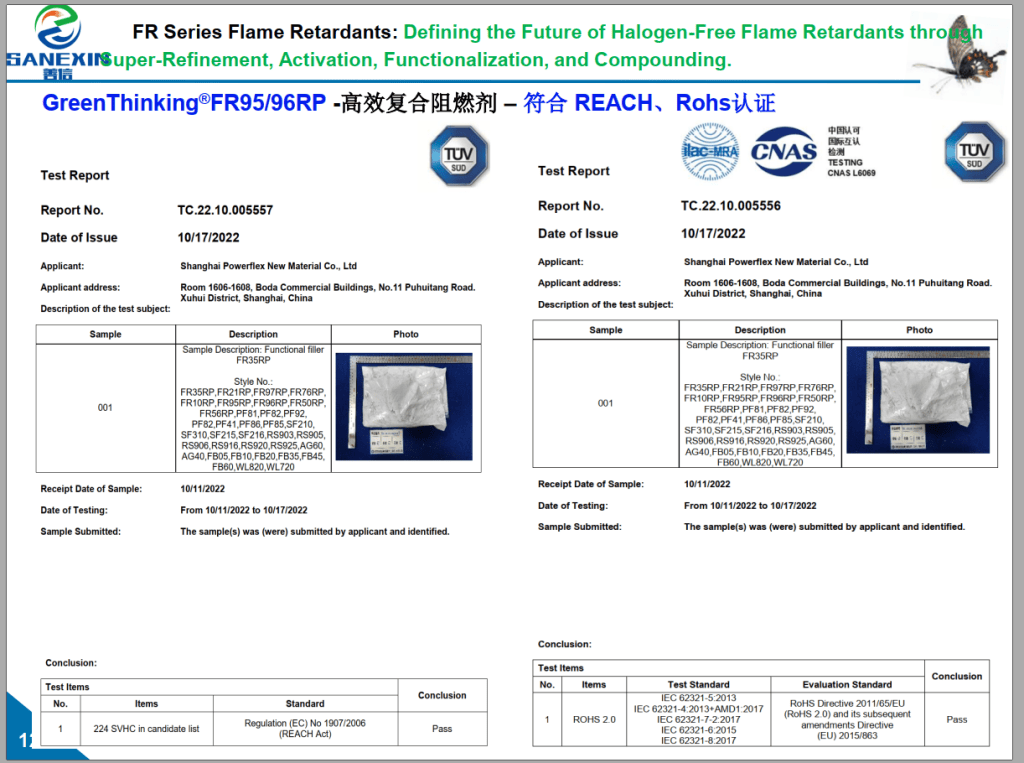

Third-party testing confirms compliance with all restricted substance limits.
9.3 GB/T 24267-2009 Compliance
FR76RP meets the requirements of GB/T 24267-2009 – the Chinese national standard for building flame-retardant sealants. This standard specifies classification, requirements, test methods, inspection rules, marking, packaging, transportation, and storage for flame-retardant sealants used in building applications.
10. Technical FAQ
Q1: “What makes FR76RP different from conventional flame retardants for silicone sealants?”
FR76RP’s distinction lies in three areas: ultra-fine particle size (D(0.5) = 2.65 μm), surface modification, and lamellar platelet structure. Conventional flame retardants like aluminum hydroxide and zinc oxide have larger, irregular particles that agglomerate, resulting in rough surfaces, bubbles, and poor dispersion. FR76RP’s engineered particle characteristics ensure rapid, uniform dispersion, smooth bubble-free surfaces, and superior char formation with anti-drip properties. This is the difference between a filler and an engineered solution.
Q2: “Can FR76RP be used in both addition-cure and condensation-cure silicone systems?“
Yes. FR76RP’s surface treatment and chemical stability make it compatible with both addition-cure (platinum-catalyzed) and condensation-cure (tin-catalyzed) silicone systems. The ultra-fine particle size and low moisture content (≤0.36%) minimize interference with cure chemistry—a common challenge with conventional fillers that contain surface moisture or reactive impurities.
Q3: “How does FR76RP compare to halogenated flame retardants in terms of cost and performance?”
Halogenated flame retardants are typically lower in cost per kilogram but carry increasing regulatory risk and potential for toxic byproduct formation during combustion (including corrosive hydrogen chloride gases). FR76RP, while priced at a premium to commodity halogenated products, offers total cost of ownership advantages through:
- Reduced compound density (lower material consumption per part)
- Faster cure times (higher production throughput)
- Superior surface quality (reduced rejection rates)
- Regulatory compliance assurance (no future reformulation costs)
- Elimination of antimony trioxide (a significant cost driver and regulatory concern in many halogenated systems)
- Low smoke emission (safer in fire scenarios)
For high-value applications in construction, rail transit, and electronics, the performance and compliance benefits substantially outweigh the raw material cost differential.
11. Conclusion: The Ultra-Fine Solution for the Halogen-Free Future
The trajectory of flame retardant regulation is clear: environmental protection, low toxicity, high efficiency, and multi-functionality will define the next generation of products. The global flame retardant silicone sealant market is expanding, driven by building fire safety regulations and green material requirements. FR76RP, with its halogen-free formulation, V-0 capability, ultra-fine particle engineering, and superior processing characteristics, is positioned at the forefront of this transition.
The data and mechanisms presented in this report demonstrate that it is possible to achieve demanding flame retardancy targets without sacrificing dispersion quality, surface finish, adhesion, or processing efficiency. The key lies in the integration of flame retardant chemistry with compounding expertise—a combination that Sanexin is uniquely positioned to provide, with its dual identity as both a flame retardant developer and one of China’s Top 5 custom compounders.
For silicone sealant manufacturers and rubber compounders evaluating the transition to halogen-free flame retardant systems, the recommendation is clear: flame retardant selection must be validated in the actual compound, under actual processing conditions, with actual production equipment. Specification sheets and laboratory data are essential starting points—but they are not substitutes for production-scale validation.
FR76RP is not just a flame retardant. It is a production-validated solution engineered for the halogen-free future.
12. Resources and Contact
Technical Documentation
- Product Technical Data Sheet (TDS) for GreenThinking® FR76RP
- Silicone sealant formulation recommendations
- REACH and RoHS compliance certificates
- GB/T 24267-2009 compliance documentation
- Custom formulation development reports
- Production-scale trial documentation
Facility Visits and Sample Testing
Sanexin welcomes technical visitors to its manufacturing and compounding facilities. On-site visits provide an opportunity to:
- Observe FR76RP production processes (ultra-fine processing and surface modification)
- Review quality control and testing protocols
- Tour China’s first dust-free colored silicone rubber production line
- Visit the Top 5 custom compounding facility and witness production-scale mixing
- Discuss custom silicone sealant formulation requirements with technical staff
- Review real-time production data and batch consistency records
- See FR76RP dispersion and processing demonstrations in silicone and rubber compounds
Sample requests for laboratory evaluation and production trials are available upon request. Sanexin offers technical support during customer scale-up and formulation optimization—including on-site assistance if required.
Contact Information
Sanexin Polymer Fine Material Co., Ltd.
Commercial Office:
Room 1606-1608, Boda Commercial Buildings
No. 11 Puhuitang Road, Xuhui District
Shanghai, China 200030
Tel: +86 21 6487 9251
Fax: +86 21 5106 2693

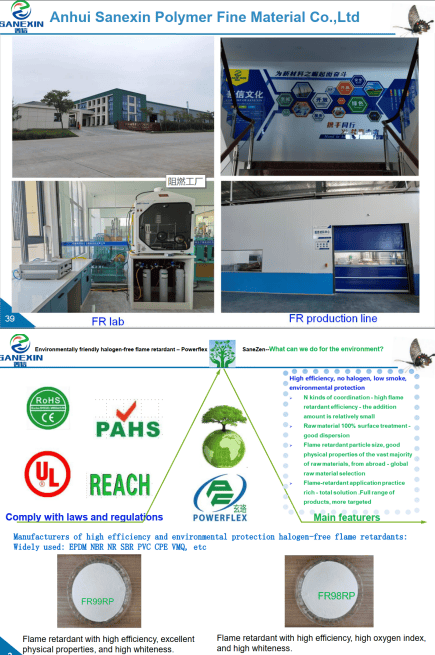

Manufacturing Plant:
Baishou Road, North District of Xuan Zhou Economic Development Zone
Xuancheng City, Anhui Province, China
Website: www.sanezenrubber.com
Email:
yorichen@sanezen.com
English
Spanish
Russian
