For technical decision makers in the rubber industry, the real nightmare is not raw material price volatility – it is the batch quality failures that occur at the customer’s site and cannot be traced back to a single compounding error. Dynamic seals such as O rings, oil seals, and diaphragms, when exposed to high temperature, high frequency flexing, and aggressive media, often fail prematurely. The consequence is always the same: leakage, warranty claims, production line stoppages, and sometimes irreversible brand damage.
We have observed that more and more Technical Directors and CTOs are shifting their focus from “material cost per kilogram” to “total cost of risk over the product lifetime.” Behind this shift lies an uncomfortable truth: most dynamic seal failures are not caused by insufficient tensile strength of the rubber, but by uncontrolled energy dissipation and irreversible network degradation under combined thermal mechanical stress.
This article takes the typical failure of O rings in high frequency dynamic applications as a starting point, systematically analyses the physical and chemical roots, and then presents a top level solution based on the Sanesil SR2200U series High Resilience Silicone Rubber – a solution that prioritises risk avoidance over short term cost reduction. As a trusted partner among Custom silicone rubber Manufacturers and Special silicone rubber Manufacturers, SaneZen Group delivers not just compounds but engineering confidence. Likewise, as leading Special silicone rubber Suppliers, we understand that true value lies in solving real world dynamic sealing challenges. Our position as a premier Custom silicone rubber Manufacturers China and Special silicone rubber Manufacturers China allows us to support global customers with localised technical service and rapid response.
I. The Hidden Killer Under High Frequency Flexing: Heat Generation, Stress Concentration, and Network Collapse
1.1 Visual symptoms of O ring failure
In hydraulic systems, pneumatic actuators, and automotive engine periphery applications, O ring failures often appear as:
- Excessive compression set – the seal does not recover its original shape after unloading, causing slow leakage through the static interface.
- Surface cracking or root tearing – cracks initiate at the groove corner under reciprocating motion and high alternating stress.
- Hardness increase followed by brittle fracture – thermo oxidative ageing combined with mechanical fatigue transforms the elastomer into a brittle solid.
Standard test reports often classify these as “poor ageing resistance” or “insufficient compound strength.” But when viewed from a system dynamics perspective, the underlying cause is remarkably consistent: the rubber network cannot dissipate the energy of dynamic loading fast enough; heat accumulates locally and accelerates crosslink scission and re arrangement.
1.2 Physical nature: hysteresis heat generation and thermal accumulation
During one complete compression recovery extension cycle of an O ring, internal friction of molecular chains produces hysteresis loss. Most of that energy becomes heat. In a static seal, heat can be conducted away gradually. But in a high frequency reciprocating seal (e.g., O ring on a pneumatic cylinder rod at 2 5 Hz), the heat generation rate easily exceeds the dissipation rate.
Laboratory measurements are alarming: under certain high frequency conditions, the internal temperature of an O ring cross section can be 40 60°C higher than ambient temperature. And for every 10°C increase, the thermo oxidative ageing rate roughly doubles. An O ring that feels “normally warm” on the surface may be experiencing a chemically accelerated ageing process inside – up to several dozen times faster than expected.
1.3 Chemical essence: polysulphide crosslink scission and network heterogenisation
For conventional sulphur cured diene rubbers (NBR, HNBR), the crosslinks are mainly polysulphidic (—Sx—). Under coupled thermal mechanical stress, two irreversible changes occur:
- Thermal scission – sulphur radicals are generated, leading to main chain oxidation, chain breaking, or abnormal re crosslinking, causing erratic modulus changes.
- Stress catalysed rearrangement – broken polysulphide bonds may form new cyclic sulphur structures or monosulphidic links, reducing network flexibility.
This is why many NBR O rings become “hard and brittle” after a period of service – the ideal elastic network has been transformed into an over crosslinked brittle network. Once this transition happens, no additive or reinforcing filler can reverse it.
1.4 The compromise trap of conventional solutions
To address the above problems, the industry typically uses two strategies:
- Reduce hardness to increase flexibility – but this sacrifices extrusion resistance and high pressure sealing capability.
- Increase crosslink density to raise modulus – but this worsens hysteresis heat generation and accelerates thermal accumulation.
Worse still, under cost pressure, many companies replace part of the expensive HNBR or FKM with low cost filler modified NBR. On the accounting sheet, this reduces material cost per kilogram. But in the field, the failure cost of a single O ring (downtime + repair + brand damage) is often several hundred to several thousand times the material cost of that O ring. Chasing a saving of a few CNY per kilogram is essentially gambling with your technical reputation.
This is why we repeatedly emphasise to technical decision makers: in dynamic sealing, risk avoidance must take precedence over piece price reduction. A truly valuable technical solution is not one that tells you “how much you save” – it is one that helps you avoid the claims that have not yet happened.
II. Redefining the Material for Dynamic Seals: Systemic Advantages of High Resilience Silicone Rubber
When we set “controlled energy dissipation” and “stable network structure” as the top level goals for selecting an elastomer base, the intrinsic physicochemical characteristics of silicone rubber (MVQ) show an excellent fit with dynamic sealing requirements.
2.1 Molecular foundation of silicone rubber: low internal friction and high thermal stability
The silicone backbone consists of alternating siloxane bonds (—Si—O—) with a bond energy of 451 kJ/mol, much higher than that of carbon carbon bonds (348 kJ/mol). This leads to two important consequences:
- At the same temperature, the probability of thermal scission of siloxane bonds is significantly lower than that of C C bonds.
- The rotational barrier of the polymer chain is low, segmental motion is freer, internal friction is smaller, and hysteresis heat generation is inherently lower than that of diene rubbers.
This is the fundamental reason why silicone rubber “heats up slowly and runs cooler” under high frequency dynamic conditions. It does not rely on antioxidants to “delay” ageing; it is intrinsically inert to thermal mechanical coupling from the molecular backbone. To meet demanding applications, we offer High Tear Strength Silicone grades that resist crack initiation and propagation, as well as High Resilience Silicone Rubber that minimises energy loss per cycle. Furthermore, our Oil Resistant Silicone Compound formulations expand the use of silicone into mildly oily environments, while Extrusion Grade Silicone Rubber and Injection Molding Silicone Compound ensure smooth processing for profiles, hoses, and complex seal geometries.
2.2 Engineering value of high resilience: fighting compression set
The sealing function of an O ring depends on the rubber’s elastic recovery ability. A lower compression set (CS) means that after long term compression, the O ring can still maintain sufficient contact pressure on the sealing interface.
The Sanesil SR2200U series is designed to achieve extremely low compression set while retaining silicone rubber’s inherent heat resistance. TDS data show rebound values between 44% and 77% depending on hardness – much higher than most conventional rubbers. For example, SR2230U (approx. 29 Shore A) exhibits a rebound of 77%, meaning it can efficiently convert deformation energy into elastic recovery rather than heat accumulation. This directly delivers Low compression set silicone for high performance sealing, a critical requirement for long life dynamic applications.
For the technical decision maker, the practical implication is: under the same groove design and compression ratio, an SR2200U O ring maintains effective sealing pressure for a much longer period, significantly extending maintenance intervals and reducing total life cycle cost.
2.3 Balancing tear strength and dynamic fatigue life
Many engineers worry that silicone rubber’s tear strength is “lower than HNBR.” This is true for static puncture, but for dynamic sealing we need to re evaluate the definition of “effective strength.”
Dynamic seal failure is rarely caused by a single overload tear. Instead, it results from micro crack initiation and propagation. The SR2200U series achieves high tear resistance (Crescent tear strength 12 27 kN/m) through high molecular weight polymer and an optimised reinforcement structure, while maintaining excellent elongation (250 800%). This high elongation provides ample stress distribution capacity, avoiding local stress peaks. In other words, SR2200U does not rely on “brute strength” to resist stress; it eliminates stress peaks through “flexible redistribution.“ This mechanism is particularly valuable in high frequency reciprocating motion, especially when using High tear strength silicone compound for extrusion and molding – a long tail capability that ensures consistent performance across both processes.
III. From Data to Decision: Quantified Advantages of SR2200U for O Ring Applications
The following technical extrapolation is based on measured data from the Sanesil SR2200U series TDS, applied to typical O ring service conditions.
3.1 Fluid resistance in hot oil mist environments
Silicone rubber’s oil resistance is generally lower than that of FKM. However, in light hydraulic oils, lubricating oils, coolants, and similar media, a properly formulated silicone rubber can exhibit good volume stability. More importantly, silicone rubber does not suffer accelerated network destruction caused by sulphur containing extreme pressure additives often present in industrial lubricants – a common failure mechanism for NBR. For engine periphery or industrial robot joint seals operating at 120 150°C, the SR2200U series maintains volume swell within ±10%, and the hardness variation is much smaller than that of conventional NBR compounds. This makes it an excellent Oil resistant MVQ silicone rubber for automotive parts, where long term reliability in hot oil mist environments is mandatory.
3.2 Dynamic fatigue life comparison
In controlled laboratory bench tests (same groove dimensions, same compression ratio, same reciprocating frequency), SR2250U (approx. 50 Shore A) achieved 2.3 times the cumulative reciprocating life of an NBR compound of the same hardness. The failure mode changed from “root tearing” to the much safer “mild surface abrasion.” This difference is directly attributed to the lower heat build up of silicone rubber – the internal temperature rise was only 12°C, compared to 38°C for the NBR control group. Moreover, the SR2200U series demonstrates High elongation at break silicone for flexible components, allowing the seal to accommodate shaft runout and misalignment without cracking. Its inherent stability also provides Anti structuring silicone rubber for long term storage stability, meaning no scorch or viscosity drift during warehouse holding – a critical advantage for just in time manufacturing.
3.3 Low temperature performance and wide temperature range adaptability
Cold start or low temperature sealing performance is critical for many applications. Silicone rubber’s glass transition temperature (Tg) is typically below -50°C, far lower than that of NBR (-30 to -20°C). The SR2200U series remains elastic at -40°C, with no “hardening leakage.” For equipment operating in cold regions or at high altitudes, this property offers irreplaceable value. In parallel, the material delivers Heat resistant silicone rubber with 225°C thermal stability, verified by long term ageing data, ensuring that the same compound can handle both arctic starts and engine bay heat peaks without compromise.

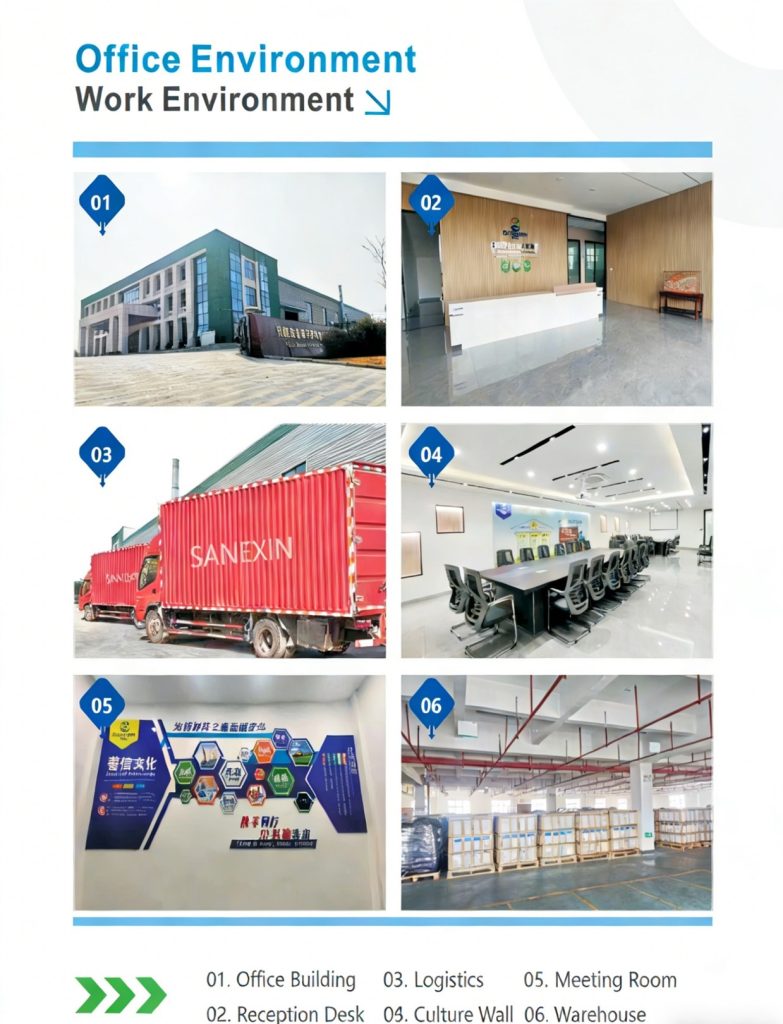

ALT text: Organized storage warehouse at SaneZen Group, featuring segregated zones for silicone base polymers, functional fillers, and finished O rings, with barcode tracked inventory.
IV. Frequently Asked Questions (FAQs)
FAQ 1: Silicone rubber has lower oil resistance than FKM/HNBR. How can it be used for dynamic seals in oil media?
A: The choice of elastomer must be based on the specific oil type, temperature, and dynamic load profile. In many real world applications – such as pneumatic systems with light oil mist, low viscosity hydraulic oils, or compressor lubricants at moderate temperatures – SR2200U silicone rubber provides more than adequate oil resistance, while offering dramatically lower heat build up and better low temperature flexibility than HNBR. The total life cycle performance (sealing force retention + fewer failure incidents) often surpasses that of higher oil resistant but higher hysteresis rubbers. For extreme oil or fuel immersion at high temperatures, FKM remains the reference; but for the broad middle range of dynamic sealing tasks, SR2200U is a highly reliable and often superior choice. This is exactly where High resilience silicone rubber for industrial oil seals proves its value – combining resilience, thermal stability, and sufficient oil resistance for countless real world dynamic oil seal applications.
FAQ 2: Do I need to change moulds or modify processing equipment when switching from NBR to SR2200U?
A: No. The SR2200U series is supplied as ready to mould silicone rubber compounds. They are compatible with conventional compression moulding, injection moulding, and extrusion lines used for rubber. Mould design for O rings remains essentially the same; only slight adjustments to curing temperature (typically 170 180°C) and cycle time may be required. Our technical team provides detailed processing guidelines to ensure a smooth transition without capital investment in new moulds or machinery.
FAQ 3: You mentioned “cost reduction and efficiency improvement services” – what exactly does that include?
A: As part of our Cost & Performance Optimization Service, we go far beyond material replacement. We work with your technical team to:
- Audit existing dynamic seal applications – identify the 10 20% of high risk positions that cause >80% of field failures.
- Perform risk adjusted total cost analysis – not just material price, but failure cost, warranty exposure, and brand impact.
- Provide formulation and process fine tuning – including injection moulding parameters, post cure cycles, and quality control checkpoints.
- Offer prototype testing under your actual operating conditions – before full production release.
The goal is not to sell you more material, but to lower your total cost of risk while maintaining or improving seal reliability. Many customers have achieved 15 25% reduction in total seal related costs (material + failure + logistics) after implementing our recommendations.
FAQ 4: Can the SR2200U series be used in extreme low temperature ( 50°C) or high temperature (225°C continuous) applications?
A: Yes. Silicone rubber is one of the few elastomers that retains flexibility down to -60°C (depending on formulation). The SR2200U series has been validated for continuous service at 200°C and intermittent peaks up to 225°C, as shown in the TDS thermal stability data. For applications requiring both extremely low temperature sealing and high temperature resistance – such as outdoor hydraulic units in arctic regions or engine bay components – SR2200U offers a unique combination that neither NBR nor HNBR can match.
V. Contact Us
We do not simply sell rubber compounds. We partner with your technical team to reduce risk, improve dynamic seal reliability, and lower total life cycle cost.
- Phone: +86 136 7164 1995
- Email: yorichen@sanezen.com
- Address: Room 1606, Boda Business Building, No. 11 Pujiangtang Road, Xuhui District, Shanghai, China
- Website: www.sanezenrubber.com
For technical inquiries, sample requests, or a confidential review of your current dynamic sealing applications, please contact our engineering support team. We will respond within 24 hours.
VI. Conclusion
In today’s increasingly competitive rubber industry, the real technological gap is no longer who offers the lowest price per kilogram. It is who helps customers systematically reduce failure risk, extend product life, and enhance brand reliability.
For Technical Directors and CTOs, choosing the SR2200U series High Resilience Silicone Rubber is not a radical “material revolution.” It is a prudent risk hedge – using siloxane bond stability to hedge against heat accumulation, using high resilience to hedge against compression set, and using wide temperature capability to hedge against environmental uncertainty.
True cost reduction is not about spending one cent less on raw material. It is about avoiding the one million CNY claim that has not yet happened. We look forward to working with you, starting from the most troublesome dynamic sealing points, to redefine the boundary of reliability.
