I. Market Analysis: Continuous Growth in Demand for High-Performance Rubber Additives
In recent years, the global rubber products industry has faced increasingly stringent application requirements. Whether for automotive tires, engineering rubber vibration dampers, or transmission and conveyor belts, end markets have set higher standards for the durability, fatigue resistance, heat aging resistance, and interfacial adhesion strength of rubber products.
For tire manufacturers and Rubber additive Manufacturers China as well as Rubber additive Suppliers China serving this sector, the challenges are particularly evident. With the rise of new energy vehicles and the growing market share of run-flat tires, the sidewall support compound must withstand prolonged, high-load driving under zero air pressure. This poses severe challenges to the compression fatigue resistance, dynamic heat build-up control, and adhesion to steel cords of rubber materials. Specifically, Additives for run flat tire support compounds and a reliable Rubber anti reversion agent for high temperature vulcanization are urgently needed. Moreover, Improving adhesion between rubber and steel cords in tires has become a critical requirement for modern tire designs.
Meanwhile, traditional anti-reversion agents (such as PK900), while alleviating reversion to some extent, offer relatively single functions and cannot simultaneously meet the multiple needs of optimizing crosslink density, improving filler dispersion, and enhancing fatigue resistance. The market urgently needs a truly multifunctional rubber additive. This demand has also been recognized by Special Rubber chemical Manufacturers China and Special Rubber chemical Suppliers China, who are constantly seeking innovative solutions. Many Special Rubber additive Manufacturers are now exploring next generation products. Among them, a Natural rubber anti reversion agent that also works effectively in synthetic rubber compounds is highly desired. Furthermore, Special additives for rubber compound that can address multiple performance gaps are becoming the new standard. One such example is an Additive for Run flat tire support compound that goes beyond conventional functions.
Against this backdrop, Shanghai Xuanluo New Materials Co., Ltd., under Sanezen Group, independently developed GreenThinking® RT56 Rubber Adhesion Anti-Fatigue Agent. It has demonstrated outstanding comprehensive performance in high-end applications such as run-flat tire support compounds, anti-vibration rubber, and conveyor belts.
II. Product Advantages: Comprehensive Innovation from Molecular Structure to Macroscopic Performance
1. Unique Molecular Design: Multi Active Phenyl Ring Structure
The core advantage of RT56 lies in its molecular structure containing multiple active phenyl rings. This structural feature enables it to:
- Regulate the interaction between carbon black and rubber: The phenyl rings form π-π interactions with the carbon black surface, significantly improving the dispersion uniformity of carbon black in the rubber matrix, reducing local stress concentration points, and thus lowering dynamic heat build-up. This directly addresses Optimizing carbon black dispersion in high modulus tire formulations.
| Property | RT56 | PK900 |
| Mechanism of action | Directly participates in crosslinking (Alder-Ene reaction) | Only undergoes Diels-Alder reaction, does not participate in crosslinking |
| Active functional groups | Multiple active phenyl rings, strong activity | Side methyl group electron-donating, weak double bond activity |
| Effect on carbon black dispersion | Significantly improves | No direct effect |
| Fatigue resistance improvement | Tens to hundreds of times increase in flex life | Limited |
| Hardness and modulus control | Flexible and adjustable | Single function |
- Directly participate in vulcanization crosslinking: Through the Alder-Ene reaction, RT56 directly participates in the vulcanization crosslinking process of rubber, reconstructing the crosslinking network and forming thermally stable carbon-carbon crosslinks, effectively inhibiting reversion. This makes RT56 a true Multi functional co crosslinking agent for natural rubber compounds and also contributes to Increasing crosslink density and modulus of vulcanized rubber.
2. Significant Differences Compared to Traditional Anti Reversion Agent PK900
3. All-in-One Multifunctionality
RT56 is not just an anti-reversion agent; it is a multifunctional additive integrating co-crosslinking, anti-fatigue, adhesion promotion, and dispersion improvement. It can replace or partially replace traditional anti-reversion agents, hardeners, and even some adhesion promoters, simplifying formulation design and reducing overall costs. Its ability to enhance interfacial adhesion is particularly valuable for Enhancing interfacial adhesion in rubber to metal bonding applications. Additionally, by reducing heat generation, it excels at Reducing heat build up and compression fatigue in rubber products, making it an ideal choice for dynamic applications.
III. Our Value: Helping Customers Significantly Improve Four Core Performances
Based on actual application studies of RT56 in run-flat tire support compounds (laboratory and plant scale trials), customers can achieve the following quantifiable performance improvements:
1. Flex Fatigue Resistance: Improved by More Than One Order of Magnitude
- Laboratory data: With the addition of 1.25 phr of RT56 (Formulation 3#), the flex fatigue life of the vulcanizate increased from 224 cycles (original formulation) to 5,543 cycles (nearly 25 times). With 2.5 phr RT56 (Formulation 4#), it reached 6,062 cycles.
- Plant scale data: Formulation 3# showed flex fatigue life increase from 398 cycles to 25,884 cycles (unbroken), an improvement of over 65 times.
This means a qualitative leap in the crack growth resistance of tires under dynamic driving conditions, directly affecting the safe driving distance of run-flat tires under zero pressure.
2. Reduced Compression Fatigue Heat Build-Up: Key to Durability
- Laboratory Formulation 5# (original + 1.25 phr RT56): Compression fatigue temperature rise dropped from 28.5°C to 24.9°C, a reduction of 12.6%.
- Plant Formulation 5#: Temperature rise dropped from 34.7°C to 23.9°C, a reduction of over 10°C.
Lower dynamic heat build-up means rubber products are less prone to thermal aging failure under long-term dynamic loads, especially suitable for high-speed tires and heavy-load vibration dampers.
3. Improved Aged Adhesion (Wire Pull-Out Force)
According to test data in the RT56 product literature:
- Before aging: With RT56, wire pull-out force (POF) increased from approximately 450N to nearly 600N.
- After aging: The original formulation showed a significant drop in POF, while the RT56-containing formulation maintained a high level, with heat-aged adhesion retention significantly better than the blank group.
This is of great value for tire steel cord belts, bead wraps, and steel-cord-reinforced conveyor belts, effectively delaying interfacial delamination failure.
4. Extended Vulcanization Induction Period, Improved Processing Safety
Plant scale trials showed:
- With RT56, Mooney scorch time t5 increased from 8.6 minutes to 16.6 minutes (Formulation 3#).
- t90 vulcanization time was slightly extended but controllable, beneficial for flow and mold filling during thick product vulcanization.
A longer scorch safety window provides greater operational tolerance in mixing, calendering, and extrusion processes, reducing scrap rates.
5. Flexible Control of Hardness and Modulus
Depending on the dosage, RT56 allows flexible adjustment of hardness and dynamic/static stiffness ratio:
- Low dosage (1–2 phr): While maintaining or slightly reducing hardness, it significantly improves tensile strength and elongation at break.
- High dosage (4–8 phr): Can significantly increase crosslink density, modulus, and hardness, suitable for high-rigidity support components. This directly contributes to Increasing crosslink density and modulus of vulcanized rubber.
IV. Factory Advantages: R&D and Manufacturing Strength of Sanezen Group
- Independent R&D capability: The GreenThinking® series is an independent brand of Shanghai Xuanluo New Materials Co., Ltd. (under Sanezen Group), mastering core synthesis processes and molecular design technologies. This makes them a trusted name among Special Rubber chemical Manufacturers China and Special Rubber chemical Suppliers China.
- Strict quality control system: Each batch undergoes multiple tests including softening point, heating loss, ash content, and relative molecular weight to ensure stable performance.
- Application technical support: Provides full-process technical support from formulation optimization and mixing processes to finished product testing, helping customers quickly achieve product upgrades.

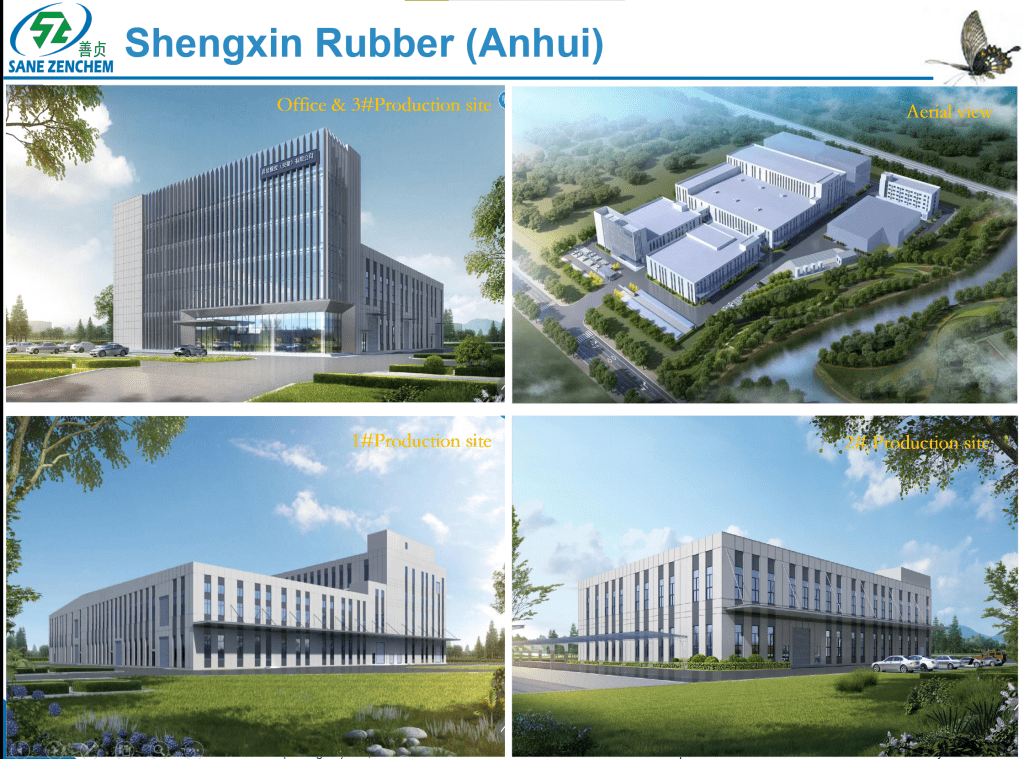

- Large-scale supply capacity: The modern production base in Xuancheng, Anhui, has sufficient annual capacity to stably meet the batch needs of large rubber product companies worldwide.
- Environmental and safety compliance: Products meet international regulations such as EU REACH, helping customers with export compliance.
As one of the leading Special Rubber additive Manufacturers, Sanezen Group also offers solutions tailored to Vibration damping rubber additives for automotive engine mounts, further expanding the application scope of RT56.
V. Frequently Asked Questions (FAQs)
Q1: What is the recommended dosage of RT56? Does the original vulcanization system need adjustment?
A: The general recommended dosage is 1–8 phr. Specific dosage depends on target properties:
- For improving fatigue resistance and adhesion, 1–3 phr is suggested.
- For significantly increasing hardness and modulus, increase to 4–8 phr.
RT56 is fully compatible with conventional sulfur/accelerator systems; no change to the original vulcanization system is required. However, at high dosages, the accelerator level may be fine tuned to match the target cure rate.
Q2: Can RT56 completely replace traditional anti-reversion agents like PK900?
A: Yes, it can replace them with superior performance. In the run-flat tire support compound study, RT56 directly replaced PK900, and key indicators such as flex fatigue life, tensile strength retention after aging, and compression fatigue temperature rise were all better than the original PK900-containing formulation. At the same time, RT56 provides additional benefits such as improving carbon black dispersion and enhancing adhesion – exactly what formulators seek when searching for a Multi functional co crosslinking agent for natural rubber compounds. Customers are encouraged to conduct small-scale trials to determine the optimal replacement ratio.
Q3: Are there any special mixing process requirements for RT56?
A: RT56 can be added using conventional mixing processes (internal mixer or open mill). To fully realize its efficacy, the following is recommended:
- Recommended process: Add raw rubber, carbon black, and RT56 simultaneously, mix for 60 seconds, then add other ingredients, followed by heat treatment at 160°C for 1 minute. This is especially effective for Optimizing carbon black dispersion in high modulus tire formulations.
- Simplified process: If only increasing modulus and hardness, it can be added during the final or masterbatch stage.
With a softening point not higher than 70°C, RT56 disperses easily at mixing temperatures and requires no special equipment.
Q4: Is RT56 suitable for rubber products other than tires?
A: Absolutely. RT56 has been successfully applied in:
- Anti-vibration rubber (e.g., automotive engine mounts): reduces dynamic heat build-up and improves fatigue life – a perfect example of Vibration damping rubber additives for automotive engine mounts.
- Conveyor belts and transmission belts: enhances adhesion between rubber and reinforcement materials, resists aging – directly contributing to Improving adhesion between rubber and steel cords in tires and similar bonding needs.
- Rubber rollers and motor mounts: increases modulus, hardness, and dimensional stability.
It is suitable for natural rubber (NR) and various synthetic rubbers (e.g., BR, SBR). For NR specifically, RT56 serves as an excellent Natural rubber anti reversion agent while also functioning as Special additives for rubber compound in a wide range of formulations. Its ability to reduce heat build-up and compression fatigue makes it ideal for Reducing heat build up and compression fatigue in rubber products, and it is also highly effective for Enhancing interfacial adhesion in rubber to metal bonding applications. Moreover, as an Additive for Run flat tire support compound and part of the broader family of Additives for run flat tire support compounds, RT56 delivers proven results. For high-temperature curing conditions, it acts as a Rubber anti reversion agent for high temperature vulcanization, ensuring consistent performance.
VI. Contact Us
Sanezen Group | Shanghai Xuanluo New Materials Co., Ltd.
GreenThinking® RT56 Product Technical Service Center
- Business address: Room 1606-1608, Boda Business Building, No. 11 Puhuitang Road, Xuhui District, Shanghai, China (Postal code: 200030)
- Factory address: Baishou Road, North District, Xuanzhou Economic Development Zone, Xuancheng City, Anhui Province, China
- Tel: +86 21 6487 9251
- Fax: +86 21 5106 2693
- Email: yorichen@sanezen.com
- Website: www.sanezenrubber.com
For technical data, sample testing, or formulation optimization support, please feel free to contact our technical sales team. Sanezen Group is committed to providing high-performance, high-consistency green additive solutions to rubber product manufacturers worldwide. Whether you are looking for Rubber additive Manufacturers China, Rubber additive Suppliers China, Special Rubber chemical Manufacturers China, Special Rubber chemical Suppliers China, or a reliable Special Rubber additive Manufacturers partner, Sanezen Group and GreenThinking® RT56 are your ideal choice.
