This article systematically presents the technical mechanism, engineering application value, and selection guide of rubber adhesion and anti fatigue agent RT56. As a high performance product from a leading tire fatigue resistance additive supplier, RT56 directly participates in the vulcanization crosslinking process, reconstructs the crosslinking network, and regulates carbon black–rubber interface interactions. It is a genuine rubber compounding additive manufacturer’s solution that combines co crosslinking, improved filler dispersion, and enhanced rubber metal adhesion in both natural and synthetic rubber compounds. Based on actual formulation test data, RT56 boosts tensile strength by 41.6%, elongation at break by 47.3%, rebound resilience by 10 percentage points, and increases run flat tire endurance by 175%. This article serves as a technical reference for material engineers and formulation R&D personnel in tire and rubber product companies.
One Sentence Definition
RT56 is a multifunctional rubber adhesion and anti fatigue agent containing multiple active benzene ring structures, which can directly participate in vulcanization crosslinking. It acts as a preferred additive from a tire durability enhancer manufacturer, because it reconstructs the crosslinking network and modulates filler rubber interfacial forces, simultaneously improving adhesion, fatigue resistance, and overall mechanical performance.
Why It Emerges: The Performance Paradox in the Tire Industry and the Birth of RT56
Modern tire manufacturing faces a persistent technical paradox: market demands for durability, safety, comfort, and fuel economy keep rising, yet conventional rubber formulation technologies are approaching their performance ceilings.
Taking tire structure as an example, different functional components impose conflicting requirements on rubber materials:
- Tread compounds demand high abrasion resistance and low heat generation, but traditional abrasion improvement often raises heat build up.
- Sidewall compounds require excellent flex fatigue resistance, which often conflicts with high modulus and hardness.
- Belt layer bonding compounds need high adhesion strength and aging resistance, yet increasing crosslink density may impair dynamic properties.
- Run flat support compounds require a balance of high hardness and high adhesion.
From a scientific perspective, adhesion failure in rubber metal composites stems from two main issues: (1) insufficient interfacial adhesion strength – the huge difference in modulus (about 4 5 orders of magnitude) between rubber and metal causes stress concentration under cyclic loading; (2) fatigue aging of the rubber matrix – micro cracks initiate and propagate under dynamic loading, leading to final failure.
Traditional solutions often address only one problem: cobalt salts improve adhesion but contribute little to fatigue resistance; increasing carbon black loading raises modulus but sacrifices processability and increases heat build up. The industry urgently needs a multifunctional additive that simultaneously solves “adhesion + fatigue resistance + mechanical balance.” RT56 was developed precisely to meet this need, and it is now offered by a professional steel cord adhesion promoter supplier and tire belt adhesion promoter manufacturer.
Common Misconceptions
Misconception 1: Adhesion performance mainly relies on cobalt salts and resorcinol formaldehyde resins; anti fatigue agents are independent functional systems.
In reality, adhesion interface failure is often not a one time peeling but fatigue delamination under cyclic loading. RT56 not only directly participates in the crosslinking network to improve matrix strength but also enhances interfacial chemical bonding – it is an integrated “adhesion + anti fatigue” solution.
Misconception 2: Increasing crosslink density always improves fatigue resistance.
A moderate increase in crosslink density can raise modulus and stress at given elongation, but excessive crosslinking restricts molecular chain mobility, aggravates stress concentration, and reduces fatigue life. RT56 “reconstructs” rather than simply “increases” the crosslinking network – its active benzene rings optimize crosslink distribution, enabling more uniform stress transfer.
Misconception 3: The main methods to improve carbon black dispersion are longer mixing time and more dispersing agents.
Over mixing can cause carbon black fragmentation and increase compound Mooney viscosity, actually harming performance. RT56 promotes dispersion at the chemical level by adjusting the carbon black rubber interfacial force, achieving better dispersion without extra energy consumption – acting as a tire compound additive for better carbon black dispersion.
Misconception 4: Higher hardness is always better, especially for support compounds.
Higher hardness often accompanies increased dynamic heat build up and reduced flex fatigue. RT56 raises hardness while simultaneously lowering compression fatigue temperature rise (experiments show a decrease of 10.8°C), achieving a “rigid yet flexible” balance.
Misconception 5: Anti fatigue agents mainly affect dynamic properties and contribute little to static adhesion.
Actual tests show that in aged wire pull out force tests, formulations containing RT56 exhibit superior retention rates, demonstrating that it improves both initial adhesion and aged adhesion retention – truly a rubber chemical to improve aging adhesion retention.
Root Cause Analysis: Four Levels of Tire Failure
Level 1: Interface debonding
Rubber and metal (or fiber cords) are materials with vastly different properties. During vulcanization and service, differences in thermal expansion coefficients, modulus, and chemical shrinkage create residual stresses at the interface. When cumulative cyclic stress exceeds the bearing capacity of interfacial chemical bonds, debonding occurs.
Level 2: Crack initiation in the rubber matrix
Under dynamic loading, stress concentration points arise from defects such as filler agglomerates, non uniform crosslinking, and micro voids. Poor carbon black dispersion is a major cause of local over stress – precisely what RT56 addresses as a tire compound additive for better carbon black dispersion.
Level 3: Crack propagation
Once a crack initiates, it gradually propagates under periodic stress through repeated “opening closing” cycles. The propagation rate is influenced by hysteresis loss, strain induced crystallization, tear resistance, and other factors.
Level 4: Thermal mechanical chemical coupled aging
Internal temperatures in running tires can reach 80 110°C, accelerating oxidative aging. Aging products (e.g., carboxyl groups, peroxides) further promote crosslink network scission and rearrangement, forming a positive feedback loop: “heat build up ↑ → aging accelerated → performance ↓ → heat build up further ↑”.
RT56’s technical value lies in acting at all four levels simultaneously: improving interfacial bonding, optimizing filler dispersion to reduce stress concentration, reconstructing the crosslinking network to improve crack propagation resistance, and reducing dynamic heat build up to slow thermal aging – characteristics that make it a true high performance tire rubber chemical additive.
Technical Mechanism
Chemical Structure Features
The molecular structure of RT56 contains multiple active benzene rings, providing the structural basis for its multifunctionality. The benzene rings impart a certain rigidity, while their active sites can participate in vulcanization crosslinking.
Triple Mechanism of Action
Mechanism 1: Participation in vulcanization crosslinking to reconstruct the network
RT56 directly participates in the vulcanization crosslinking process, with its active groups chemically bonding to rubber molecular chains to form new crosslink points. Unlike conventional sulfur vulcanization forming –C Sx C– crosslinks, the benzene ring containing crosslinks introduced by RT56 have higher bond energy and better thermal stability. This means higher retention of the crosslinking network under high temperature service conditions – positioning RT56 as an excellent heat stable rubber crosslinking agent for tire compounds.
Mechanism 2: Modulating carbon black rubber interfacial interaction
Carbon black is the primary reinforcing filler in tires, and its reinforcing effect depends on the bonding strength between carbon black particles and rubber chains, as well as the dispersion state. The polar groups in RT56 molecules adsorb onto the carbon black surface, acting as “bridges” to promote the breakup of agglomerates and uniform dispersion, while enhancing interfacial bonding. This clearly demonstrates RT56 as a tire compound additive for better carbon black dispersion.
Mechanism 3: Enhancing rubber metal interfacial adhesion
For parts containing metal components such as belt layers and beads, RT56 improves physical contact by enhancing compound fluidity and wettability; simultaneously, its active groups form chemical bonds with metal surface oxides or coatings (e.g., Cu and Zn in brass plating) during vulcanization, improving interfacial adhesion strength. Hence, RT56 serves as an effective rubber additive to improve steel cord adhesion and a reliable rubber adhesion promoter for high temperature applications.
Limitations & Trade offs
- When used with ultra accelerators, attention must be paid to curing speed matching; preliminary small scale tests are recommended to optimize accelerator dosage.
- The magnitude of improvement differs between synthetic rubbers (e.g., BR, SBR) and NR; dosage should be adjusted according to the base rubber type.
- High addition levels may affect compound Mooney viscosity; process adjustments may be necessary.
- Recommended dosage: 1.0 3.0 phr, optimized based on target properties.
Comparative Analysis
Table 1: Functional comparison between RT56 and traditional additives
| Comparison dimension | RT56 | Conventional cobalt salt adhesion promoter | Ordinary anti fatigue agent (e.g., PL 600) | Resorcinol formaldehyde resin |
| Primary function | Co crosslinking + adhesion + anti fatigue | Promotes adhesion | Improves fatigue resistance | Improves adhesion |
| Effect on crosslinking network | Reconstructs and optimizes | No significant effect | Indirect effect | No effect |
| Improves carbon black dispersion | Yes | No | Partial | No |
| Improves metal adhesion | Strong | Very strong | Weak | Strong |
| Improves flex fatigue | Significant (>6.5×) | Limited | Significant | Limited |
| Effect on heat build up | Significantly reduces | Slight | Partially reduces | May increase |
| Heat aging resistance | Excellent | Good | Good | Good |
| Environmental compliance | REACH/RoHS compliant | Compliant | Compliant | Restricted (formaldehyde release) |
Table 2: Performance comparison of tread compound with and without RT56 (based on actual formulation tests)
| Property | Blank (1#) | With RT56 (3#/5#) | Change |
| Tensile strength / MPa | 13.41 | 18.58 18.99 | ↑38.6% 41.6% |
| Elongation at break / % | 146 | 215 218 | ↑47.3% 49.3% |
| Tear strength / (kN·m⁻¹) | 36 | 43 | ↑19.4% |
| Rebound resilience / % | 60 | 70 | ↑10 pp |
| Flex cracking / cycles | 3,982 | 13,349 25,884 | ↑3.35 6.5× |
| Compression fatigue temperature rise / ℃ | 34.7 | 23.9 | ↓10.8℃ |
Table 3: Finished tire performance comparison (235/45R18 98W)
| Test item | Blank | RT56 formulation | Improvement |
| Endurance / cumulative running time | 50 h | 80 h | ↑60% |
| High speed performance | 90 min | 115 min | ↑27.8% |
| Run flat endurance (core index) | 60 min | 165 min | ↑175% |
Applications
Typical industries and products:
| No. | Industry | Typical product | Key contribution |
| 1 | Passenger car tires | High performance radial tires | Durability, high speed performance |
| 2 | Run flat tires | Zero pressure continued running tires (RFT) | Support compound hardness + adhesion balance |
| 3 | Truck tires | Truck/bus tires | Fatigue resistance, heat aging resistance |
| 4 | OTR tires | Off the road tires | Cut resistance, fatigue resistance |
| 5 | Aircraft tires | Aircraft tires | High modulus + low heat build up |
| 6 | Motorcycle tires | High speed motorcycle tires | Handling stability |
| 7 | Rubber conveyor belts | Steel cord conveyor belts | Adhesion + fatigue resistance |
| 8 | Rubber anti vibration parts | Engine mounts, bushings | Dynamic fatigue life |
| 9 | Rubber seals | Oil seals, O rings | Heat resistance + fatigue resistance |
| 10 | Rubber tracks | Construction machinery tracks | Tear resistance + abrasion resistance |
Case Studies
Case 1: Run flat tire support compound development
Background: An international tire brand faced stringent requirements for a new generation run flat tire: run flat endurance ≥150 minutes, while meeting conventional endurance and high speed performance.
Problem: Traditional high hardness support formulations (high carbon black + high sulfur) achieved hardness targets but had high dynamic heat build up and poor flex fatigue, averaging only 60 minutes in run flat endurance tests.
Analysis: Failure mode was interfacial debonding between the support compound and belt layer, accompanied by thermal degradation of the rubber matrix. The root causes were excessive network rigidity, interfacial stress concentration, and accelerated aging due to heat build up.
Solution: Replaced part of sulfur and carbon black with 2 3 phr RT56, leveraging its co crosslinking effect to maintain hardness, optimize the network to reduce heat build up, and improve interfacial adhesion. This formulation truly acts as a run flat tire support compound adhesion promoter.
Result: Run flat endurance increased from 60 to 165 minutes (↑175%); conventional endurance rose from 50 to 80 hours; high speed performance improved from 90 to 115 minutes.
Lessons learned: RT56’s “rigid yet flexible” characteristics make it an ideal choice for support formulations – significantly improving dynamic fatigue and interfacial durability without sacrificing stiffness. As a product from a run flat tire additive factory China, it offers both performance and cost benefits.
Case 2: All season tire tread anti cracking improvement
Background: All season tire treads must balance wet/dry grip and long mileage wear; formulations struggle with low carbon black loading (for wet grip) and abrasion resistance.
Problem: Tread groove bottom cracking appeared in the mid to late service life, affecting tire life and safety.
Analysis: Limited carbon black loading led to insufficient reinforcement, and poor dispersant uniformity caused local stress concentration – the core reason for crack initiation.
Solution: Added 1.5 phr RT56 to improve carbon black dispersion and enhance overall mechanical properties via co crosslinking.
Result: Flex cracking life increased from about 4,000 cycles to over 13,000 cycles – an improvement of more than 3×. This confirms RT56 as an effective rubber flex fatigue resistance additive for tires.
Failure Analysis: Typical Failure Modes and RT56 Countermeasures
Failure mode 1: Belt layer end delamination
Cause: The belt layer end is a stress concentration zone; micro cracks initiate and propagate at the rubber wire interface under cyclic loading. Thermal oxidative aging further degrades the adhesion interface.
RT56 countermeasure: Improves initial adhesion and aged adhesion retention; reduces dynamic heat build up and slows thermal aging – functioning as a rubber chemical to reduce heat build up in tires.
Failure mode 2: Sidewall flex cracking
Cause: The sidewall undergoes the highest deformation; repeated flexing causes surface cracking that gradually extends to the carcass plies.
RT56 countermeasure: Reconstructs the crosslinking network and improves carbon black dispersion, greatly increasing flex fatigue life (experimental data show a 6.5× improvement) – truly a rubber additive to prevent sidewall flex cracking.
Failure mode 3: Tread groove bottom cracking
Cause: Stones or foreign objects embed in the tread grooves, and repeated compression tension leads to crack initiation at the groove bottom.
RT56 countermeasure: Improves tear strength and flex fatigue performance, delaying crack initiation and propagation.
Failure mode 4: Run flat tire carcass collapse
Cause: Insufficient support compound stiffness or interfacial debonding under zero pressure conditions prevents the carcass from maintaining structural integrity.
RT56 countermeasure: Achieves the balance of “high hardness + good adhesion + low heat generation” – making it a top run flat tire support compound adhesion promoter.
Selection Guide: Applicability of RT56
Scenarios suitable for RT56:
- Tires or rubber products requiring both high adhesion strength and high fatigue resistance.
- Components operating under high temperature dynamic service conditions (e.g., belt layers, support compounds).
- Need to increase modulus and hardness without raising carbon black loading.
- Strict requirements on dynamic heat build up (low rolling resistance, low heat generation).
- Need to improve filler dispersion to address poor carbon black dispersion in formulations.
- Products must comply with REACH, RoHS and other environmental regulations.
- High end products such as run flat tires, high performance radial tires, and heavy load tires.
Scenarios better suited for other technical routes:
- Only adhesion improvement needed without fatigue concerns → choose conventional cobalt salt systems.
- Only fatigue resistance needed without metal adhesion → choose ordinary anti fatigue agents (e.g., PL 600).
- Formulations already contain numerous active additives; compatibility needs reassessment.
- Non critical applications with extreme cost sensitivity.
Lifecycle Analysis
Early stage (0 10,000 km):
- Improved carbon black dispersion and network uniformity provide better initial performance consistency.
- Lower rolling resistance and better fuel economy.
- Uniform tread wear without abnormal patterns.
Mid stage (10,000 50,000 km):
- Fatigue resistance advantages become apparent; sidewall and tread groove cracks appear significantly later.
- Belt layer adhesion interfaces remain intact without delamination risk.
- Low dynamic heat build up reduces thermal oxidative aging accumulation.
Later stage (over 50,000 km):
- Superior retention of aged properties (wire pull out force, tensile strength retention) becomes prominent – thanks to RT56 as a rubber chemical to improve aging adhesion retention.
- Run flat endurance ensures safe driving distance even under loss of pressure.
- Overall tire service life is extended, reducing premature scrappage.
Maintenance advice: RT56 does not change normal tire use and maintenance practices, but its improved durability allows the important inspection intervals (pressure, wear, cracks) to be reasonably extended.
Standards and Compliance
RT56 was designed from the start to meet international market access requirements and is compliant with or can pass the following standards:
- REACH (EC 1907/2006) – EU regulation on registration, evaluation, authorisation and restriction of chemicals.
- RoHS (2011/65/EU) – restriction of hazardous substances.
- Free from nitrosamines and polycyclic aromatic hydrocarbons (PAHs).
- Applicable to ISO, ASTM, DIN and other relevant rubber testing standards.
Note: For specific standard numbers and certification details, please refer to the product Technical Data Sheet (TDS) and Safety Data Sheet (SDS).
Why Choose Us
Choosing a functional filler supplier is not only about purchasing a mineral powder. It is about selecting a technical partner that understands polymer compounding, physical failure mechanisms, and long-term product performance. As a leading specialty functional filler and performance additives manufacturer, we bring decades of compounding expertise to every customer collaboration.

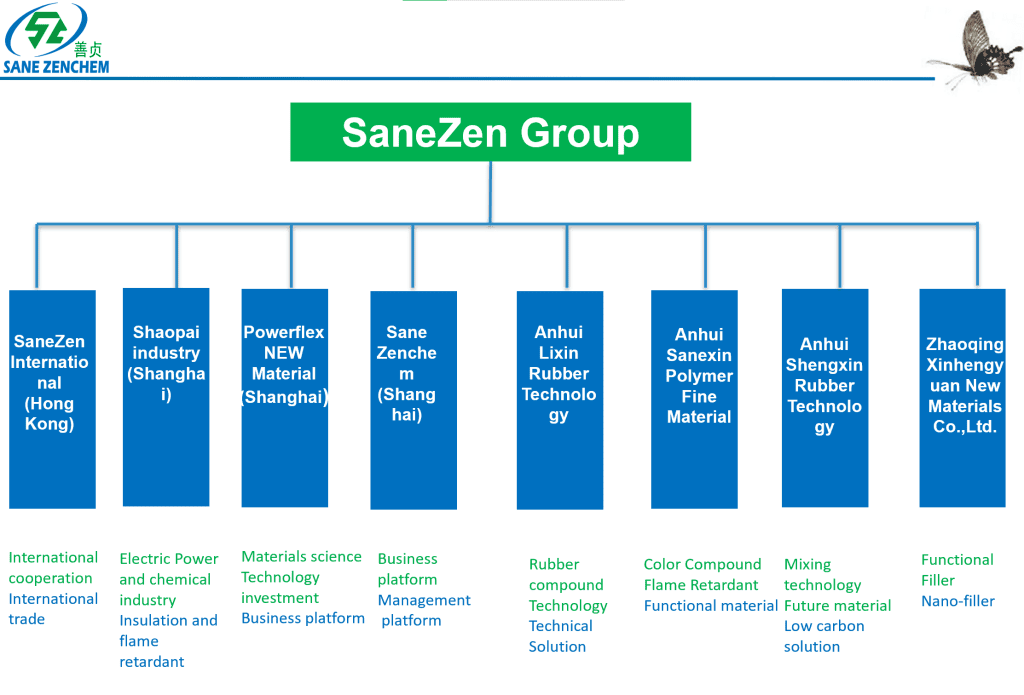

SaneZenChem operates five manufacturing facilities specialising in:
• Rubber Compounds
• Silicone Rubber Compounds
• Specialty Functional Fillers
• Flame Retardants
• Polymer Performance AdditivesBecause we formulate and manufacture rubber and silicone compounds ourselves, every specialty product we develop originates from solving real production challenges rather than laboratory concepts alone. This application-driven approach allows us to deliver practical solutions that create measurable improvements in customer products – from eliminating processing viscosity spikes and preventing micro cracking, to ensuring high dielectric strength in harsh electrical environments. Our unique dual position as both a direct compounder and a premier specialty functional filler manufacturer means we are uniquely equipped to support rubber, epoxy, and electrical insulation manufacturers in achieving longer service life, processing efficiency, and ultimate reliability.
FAQ
Q1: What is the recommended addition level of RT56?
Short Answer: Generally 1.0 3.0 phr.
Detailed Answer: The optimum level depends on base rubber type, target properties and formulation system. For tread compounds: 1.0 1.5 phr; belt layer bonding compounds: 1.5 2.5 phr; support compounds: 2.0 3.0 phr. We recommend a gradient test (0.5, 1.0, 1.5, 2.0 phr) to find the best dosage.
Q2: Which rubber bases is RT56 suitable for?
Short Answer: Natural rubber (NR) and various synthetic rubbers.
Detailed Answer: RT56 works most effectively in NR systems, but also performs well in BR, SBR, NBR, and others. The degree of improvement varies with base rubber, so verification for each specific system is advised.
Q3: Can RT56 be used together with traditional adhesion systems (cobalt salt + resin)?
Short Answer: Yes, but proportions must be optimised.
Detailed Answer: RT56 can be combined with cobalt salts and resorcinol formaldehyde resins, but formulation optimisation is needed to avoid functional overlap or interference. In some scenarios, RT56 can partially or fully replace traditional adhesion systems.
Q4: Does RT56 affect vulcanisation speed?
Short Answer: Limited effect, but verification is recommended.
Detailed Answer: Experimental data show that t10, t50 and t90 of RT56 containing compounds are close to those of blank compounds, indicating little change in cure rate. However, cure curve testing is recommended before production.
Q5: How is the storage stability of RT56?
Short Answer: Stable under normal storage conditions.
Detailed Answer: Store in a cool, dry, well ventilated place away from direct sunlight. Shelf life is generally 12 months; refer to the product label for specifics.
Q6: Does RT56 contain cobalt or heavy metals?
Short Answer: No.
Detailed Answer: RT56 is an organic functional additive containing no cobalt, lead, cadmium or other heavy metals, fully compliant with REACH and RoHS.
Q7: How does RT56 improve rubber metal adhesion?
Short Answer: Through chemical bonding and improved wettability.
Detailed Answer: The active groups in RT56 form chemical bonds with metal surfaces (especially Cu and Zn in brass plating) during vulcanisation, while also improving compound flow and wetting of the metal surface – acting as a rubber additive to improve steel cord adhesion.
Q8: What is the effect of RT56 on rolling resistance?
Short Answer: Helps reduce rolling resistance.
Detailed Answer: By lowering dynamic heat build up and 60℃ tanδ values, RT56 contributes positively to reducing rolling resistance while also improving wear and fatigue resistance.
Q9: What is the unique value of RT56 in run flat tires?
Short Answer: Balances high hardness, high adhesion and low heat build up.
Detailed Answer: Run flat support compounds need high hardness for support, high adhesion for interface integrity, and low heat build up to slow aging. RT56 meets all three requirements simultaneously, achieving a 175% improvement in run flat endurance – making it the preferred run flat tire support compound adhesion promoter.
Q10: Can RT56 improve compound processability?
Short Answer: Yes, by improving processing safety.
Detailed Answer: RT56 containing formulations show lower Mooney viscosity and longer scorch time, providing a wider processing safety window, beneficial for mixing and extrusion.
Q11: How does the effect of RT56 differ among various tire components?
Short Answer: Each component emphasises different aspects.
Detailed Answer: Tread – abrasion + crack resistance; sidewall – flex fatigue; belt layer – adhesion + heat resistance; support compound – hardness + adhesion + low heat build up.
Q12: Is RT56 suitable for coloured rubber products?
Short Answer: Colour impact should be evaluated.
Detailed Answer: RT56 itself is a light coloured to light yellow powder, which may have a slight colour effect on light coloured products; colour matching tests are recommended for coloured applications.
Q13: How much does RT56 affect hardness and modulus of vulcanisates?
Short Answer: Moderate increase.
Detailed Answer: Experimental data show that at appropriate addition levels, hardness and stress at given elongation increase moderately; the exact increase depends on base rubber and formulation.
Q14: What is the difference between RT56 and other anti fatigue agents (e.g., PL 600)?
Short Answer: RT56 is a multifunctional “adhesion + anti fatigue” additive.
Detailed Answer: Ordinary anti fatigue agents like PL 600 mainly improve dynamic fatigue performance with limited contribution to adhesion; RT56 combines both adhesion promotion and fatigue resistance, making it more suitable for components such as belt layers and support compounds that require a balance of adhesion and fatigue – a true rubber adhesion and fatigue resistance multifunctional additive.
Q15: Does using RT56 require adjusting vulcanisation temperature?
Short Answer: Conventional vulcanisation temperatures are fine.
Detailed Answer: RT56 is effective at normal vulcanisation temperatures (140 170°C) without special adjustment.
Q16: Can RT56 be used in EPDM systems?
Short Answer: It can be used, but verification is recommended.
Detailed Answer: RT56 is primarily designed for NR and general purpose synthetic rubbers; for specialty rubbers like EPDM, experimental verification is advised.
Q17: What is the effect of RT56 on rubber cord adhesion?
Short Answer: Significant improvement for steel cords; for fibre cords, evaluation is needed.
Detailed Answer: RT56 has ample data supporting improved steel cord adhesion; for polyester, nylon and other fibre cords, we recommend adhesion performance verification, possibly in combination with fibre adhesion promoters.
Q18: Can RT56 reduce mixing energy consumption?
Short Answer: Indirectly, by improving dispersion.
Detailed Answer: RT56 promotes carbon black dispersion, which can shorten the mixing time needed to reach target dispersion, thereby reducing mixing energy consumption – a benefit of being a tire compound additive for better carbon black dispersion.
Q19: What is the physical form and usage method of RT56?
Short Answer: Powder, added together with other ingredients.
Detailed Answer: RT56 is a powder; it is recommended to add it to the internal mixer together with rubber and carbon black at the start of mixing. Avoid adding simultaneously with accelerators to prevent local reactions.
Q20: How can I obtain technical support and samples of RT56?
Short Answer: Contact the Shanzhen Group technical service team.
Detailed Answer: You can obtain technical data sheets, samples and technical support through the Shanzhen Group official website or regional sales representatives. Shanzhen Group is a professional tire fatigue resistance additive supplier, steel cord adhesion promoter supplier, tire durability enhancer manufacturer, rubber crosslinking agent supplier, heat resistant rubber chemical provider, rubber compounding additive manufacturer, tire belt adhesion promoter manufacturer, and a trusted run flat tire additive factory China – all in one, ensuring you get the highest quality product and service.
Contact
Plant Address:
Baishou Road, North District of Xuan Zhou Economic Development Zone
Xuan Cheng City, Anhui Province, China
Commercial Address:
Room 503, Building 1, Huixin International Edifice, No. 150 Puhuitang Road, Xuhui District, Shanghai, China 200030
Tel: +86 21 6487 9251
Email: yorichen@sanezen.com / kevenwang@sanezen.com
Website: www.sanezenrubber.com
English
Spanish
Russian
